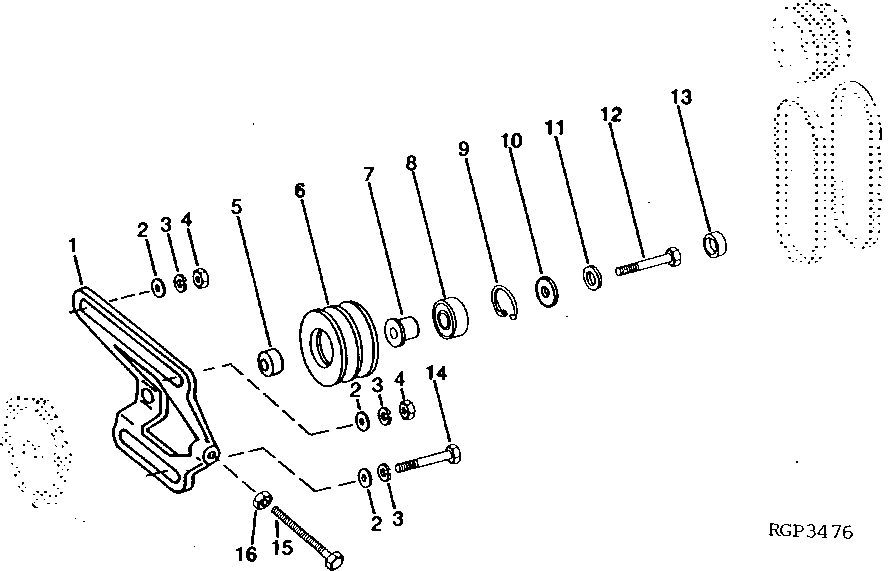

Запчасти John Deere 92DLC 2 - FAN DRIVE PULLEY AND BELT TIGHTENER 429 - ENGINE 4

1

R70775

BRACKET

1шт.

R70775

BRACKET

(JD862, JD862B)

1шт.

R110790

BRACKET

(JD862, JD862B, 992D-LC)

1шт.

2

24H1682

WASHER

13/32" X 7/8" X 0.120", (SUB (3) R51604, R47105, D2420R AND 19H1800, APPL) (SUB (3) R51604, R47105, D2420R AND 19H1800, THIS APPLICATION)

3шт.

R51604

WASHER

3шт.

3

WASHER

(NO LONGER REQUIRED)

3шт.

4

E55662

FLANGE NUT

2шт.

5

R105487

WASHER

(992D-LC)

1шт.

6

T105390

IDLER

(SUB FOR R70376)

1шт.

7

R70377

HUB

1шт.

8

JD8670

BALL BEARING

1шт.

9

R55408

WEAR RING

(SUB FOR R66072)

1шт.

10

AR92593

SEAL

1шт.

11

24H1330

WASHER

15/32" X 1-3/8" X 7/64"

1шт.

12

19H2055

CAP SCREW

7/16" X 2-1/4"

1шт.

19H2055

CAP SCREW

7/16" X 2-1/4", (JD862, JD862B, 992D-LC)

1шт.

19H2227

CAP SCREW

7/16" X 2-1/2", (JD862, JD862B, 992D-LC)

1шт.

13

R66077

PLUG

1шт.

14

19H1732

CAP SCREW

3/8" X 1-1/4", (SUB (3) R51604, T20173, D2420R AND 19H1800, APPL)

1шт.

19H1800

CAP SCREW

1шт.

15

19H3178

CAP SCREW

1/2" X 4-1/2", (JD862, JD862-B, JD890)

1шт.

16

14H971

NUT

1/2" (JD862, JD862-B, JD890)

1шт.
