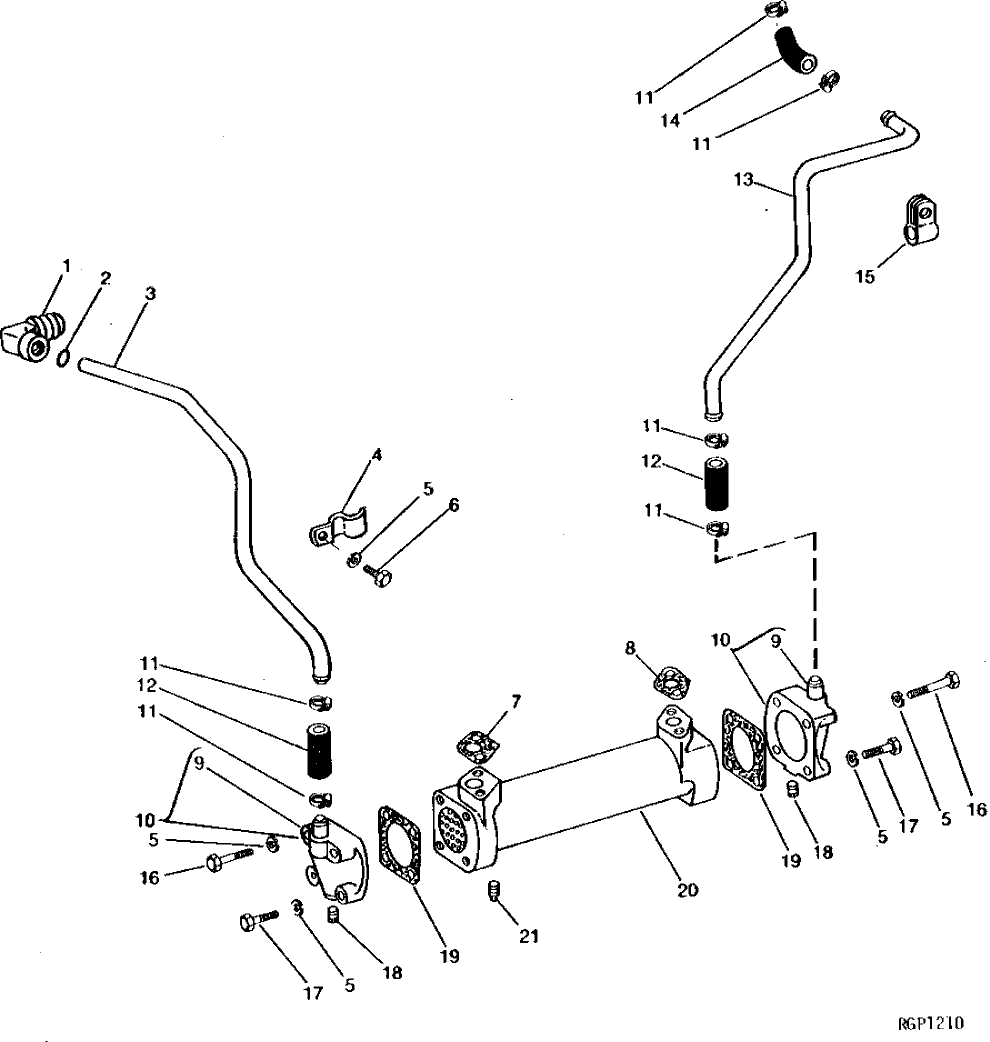

Запчасти John Deere 92DLC 2 - ENGINE OIL COOLER 419 - ENGINE 4

1

R58725

ELBOW FITTING

1шт.

2

R47153

O-RING

(SUB FOR R50420, APPL)

1шт.

3

R57514

OIL TUBE

1шт.

4

R64437

CLAMP

1шт.

5

12H304

LOCK WASHER

3/8"

8шт.

12H304

LOCK WASHER

3/8", (NOT REQUIRED WITH 19H1936)

1шт.

6

19H1936

CAP SCREW

3/8" X 3/4"

1шт.

7

R49491

GASKET

1шт.

8

R49490

GASKET

1шт.

9

R57503

TUBE

2шт.

10

AR69044

CAP

(MARKED R57502)

2шт.

11

TY22467

CLAMP

(SUB FOR AR21839)

8шт.

12

R78326

BULK HOSE

(SUB FOR R44324) 24 MM X 67 MM (1" X 2-5/8") (30R2) (CUT TO LENGTH)

2шт.

13

R68635

OIL TUBE

(SUB FOR R57515)

1шт.

14

R58684

HOSE

(JD860-B, JD862, JD862-B, 992D-LC, JD890, 890A, JD762)

1шт.

R78326

BULK HOSE

(JD855, JD850, 850LGP) (SUB FOR R44324) (CUT TO LENGTH)

1шт.

15

R72659

CLAMP

(SUB FOR AH83545)

1шт.

16

19H1819

CAP SCREW

3/8" X 2-1/8"

4шт.

17

19H1765

CAP SCREW

3/8" X 1-3/4"

4шт.

18

R55233

PIPE PLUG

(SUB FOR A4242R)

2шт.

19

R57504

GASKET

2шт.

20

AR69045

OIL COOLER

1шт.

21

15H604

PIPE PLUG

1/4"

1шт.
