2 - TURBOCHARGER

Запчасти John Deere 92DLC 2 - TURBOCHARGER 416 - ENGINE 4

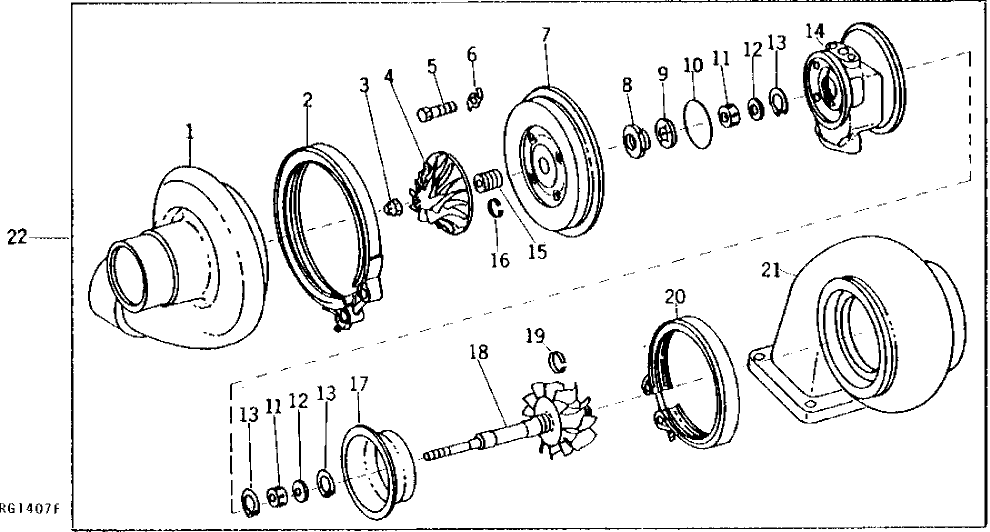

Схема запчастей John Deere 92DLC - 2 - TURBOCHARGER 416 - ENGINE 4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

HOUSING

(NO LONGER AVAILABLE)

1шт.

2

CLAMP

(NO LONGER AVAILABLE)

1шт.

3

R52865

LOCK NUT

1шт.

4

IMPELLER

(NO LONGER AVAILABLE)

1шт.

5

19H1914

CAP SCREW

1/4" X 1"

4шт.

6

R60310

PLATE

4шт.

7

PLATE

(NO LONGER AVAILABLE)

1шт.

8

LOCKING COLLAR

1шт.

9

THRUST BEARING

1шт.

10

O-RING

1шт.

11

BEARING

STD

2шт.

R60392

BEARING

0.13 MM (.005") US (NO LONGER AVAILABLE)

2шт.

BEARING

(SUB RE51483) 0.25 MM (.010") US

2шт.

RE51483

BEARING KIT

(SUB FOR R60393) (0.25 MM (.010") US

2шт.

12

R60305

SHIM

2шт.

13

R52876

SNAP RING

3шт.

14

HOUSING

1шт.

15

SPACER

( R60308 NO LONGER AVAILABLE)

1шт.

16

R52870

PISTON RING

2шт.

17

SHROUD

1шт.

18

TURBINE

( AR73130 NO LONGER AVAILABLE)

1шт.

19

PISTON RING

( R60303 NO LONGER AVAILABLE)

1шт.

20

CLAMP

1шт.

21

HOUSING

(NO LONGER AVAILABLE)

1шт.

22

AR97633

TURBOCHARGER REMAN

(REMANUFACTURED) (AIRESEARCH/GARRETT) (MARKED AR97634)

1шт.

HOUSING

( AR97631 NO LONGER AVAILABLE) (NOT ILLUSTRATED) (INCLUDES ALL PARTS SHOWN EXCEPT THE HOUSINGS AND CLAMPS) (INCLUDES ALL INTERNAL PARTS)

1шт.
