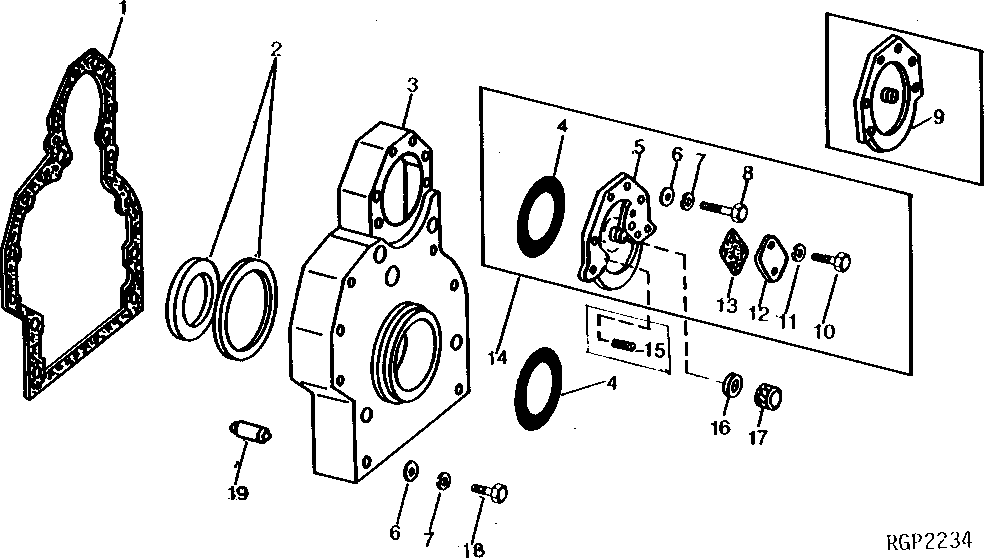

Запчасти John Deere 90 4 - TIMING GEAR AND INJECTION PUMP GEAR COVERS 402 - ENGINE 4

1

R63253

GASKET

1шт.

2

RE10738

SEAL

1шт.

3

R62149

COVER

1шт.

4

R83357

O-RING

(SUB FOR R61631)

2шт.

5

R76262

COVER

1шт.

6

24H1305

WASHER

13/32" X 13/16" X 0.065"

11шт.

7

12M7066

LOCK WASHER

10 MM

11шт.

8

19M8499

CAP SCREW

M10 X 60

6шт.

9

R61618

COVER

(SUB R67769, R67770, R76262, R83357, (2) 12M7006 AND (2) 19M7077)

1шт.

10

19M7077

CAP SCREW

M6 X 20

2шт.

11

12M7006

LOCK WASHER

6 MM

2шт.

12

R67769

COVER

1шт.

13

R67770

GASKET

1шт.

14

AR103216

COVER

(SUB R67769, R67770, R76262, R83357, (2) 12M7006 AND (2) 19M7077)

1шт.

15

R104592

PIPE PLUG

1шт.

16

B3285R

WASHER

1шт.

17

B3362R

CAP

1шт.

18

19M7181

CAP SCREW

M10 X 55

5шт.

19

R48685

DOWEL PIN

2шт.
