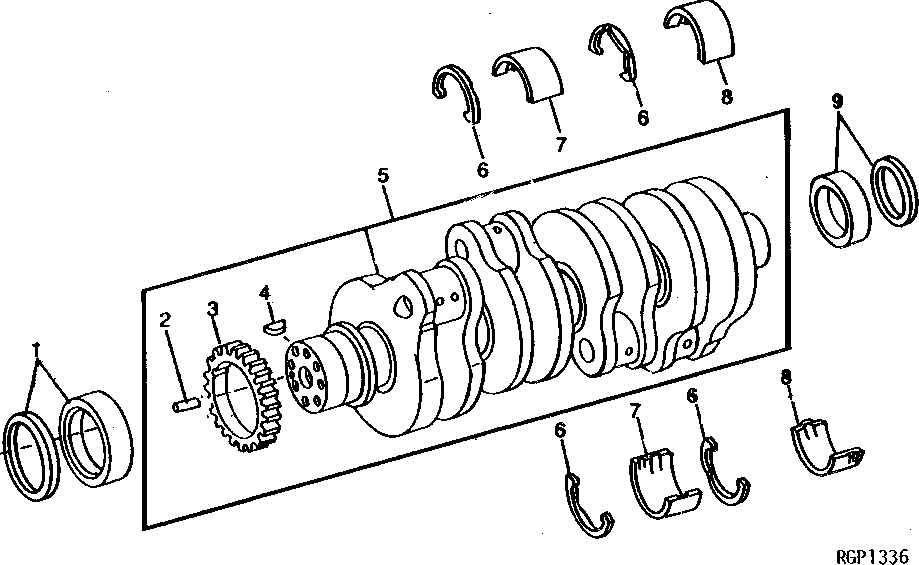

Запчасти John Deere 90 1 - CRANKSHAFT AND MAIN BEARINGS 401 - ENGINE 4

1

RE10738

SEAL

1шт.

2

R61403

DOWEL PIN

1шт.

3

R58756

GEAR

1шт.

4

26H85

SHAFT KEY

1/4" X 1"

1шт.

5

AR96769

CRANKSHAFT

(MARKED R58739)

1шт.

6

RE17510

WASHER

(PKG (4) R76217 OR (4) R80626) (SUB FOR AR104047)

1шт.

RE17511

WASHER

0.18 MM OS, (PKG (4) R68130 OR (4) R80627) (SUB FOR AR85086)

1шт.

7

RE15494

BEARING

STD (PKG R79567 AND R79568) (SUB FOR RE10357)

1шт.

RE15495

BEARING

0.05 MM US (PKG R79569 AND R79570)

1шт.

RE15496

BEARING

0.25 MM US (PKG R79575 AND R79576) (SUB FOR RE10358)

1шт.

RE20071

THRUST BEARING

0.50 MM US (PKG R81641 AND R81642 OR R77107 AND R77108) (SUB FOR RE10359)

1шт.

RE20072

THRUST BEARING

0.75 MM US (PKG R81643 AND R81644)

1шт.

8

RE15491

BEARING

STD (PKG R79565 AND R79566) (SUB FOR RE10354)

ARшт.

RE15492

BEARING

0.05 MM US (PKG R79573 AND R79574)

ARшт.

RE15493

BEARING

0.25 MM US (PKG R79571 AND R79572) (SUB FOR RE10355)

ARшт.

RE20073

BEARING

0.50 MM US (PKG R77103 AND R77104 OR R81645 AND R81646) (SUB FOR RE10356)

ARшт.

RE20074

BEARING

0.75 MM US (PKG R81647 AND R81648)

ARшт.

9

AR85087

SEAL

1шт.
