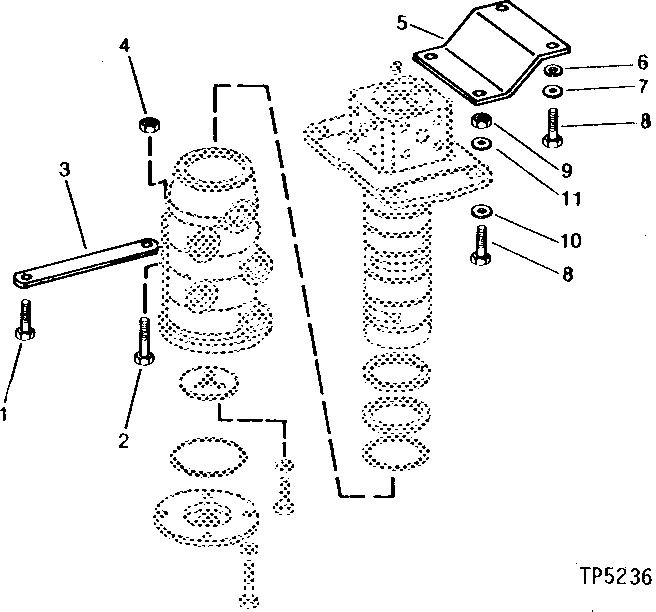

Запчасти John Deere 90 25 - ROTARY MANIFOLD ATTACHING HARDWARE 260 - AXLES AND SUSPENSION SYSTEMS 2

1

19H2735

CAP SCREW

1/2" X 2"

1шт.

2

19H1820

CAP SCREW

1/2" X 3"

1шт.

3

T47660

STRAP

1шт.

4

K40014

LOCK NUT

(SUB FOR BP12214, THIS APPLICATION)

1шт.

5

T47659

BRACKET

2шт.

6

12H301

LOCK WASHER

ARшт.

7

24H1111

WASHER

17/32" X 1-1/16" X 0.090"

4шт.

8

19H2993

CAP SCREW

1/2" X 1-1/2"

8шт.

9

14H1040

NUT

1/2"

4шт.

10

24H1341

WASHER

17/32" X 15/16" X 0.060"

4шт.

11

24H1254

WASHER

17/32" X 1-1/8" X 0.105"

4шт.
