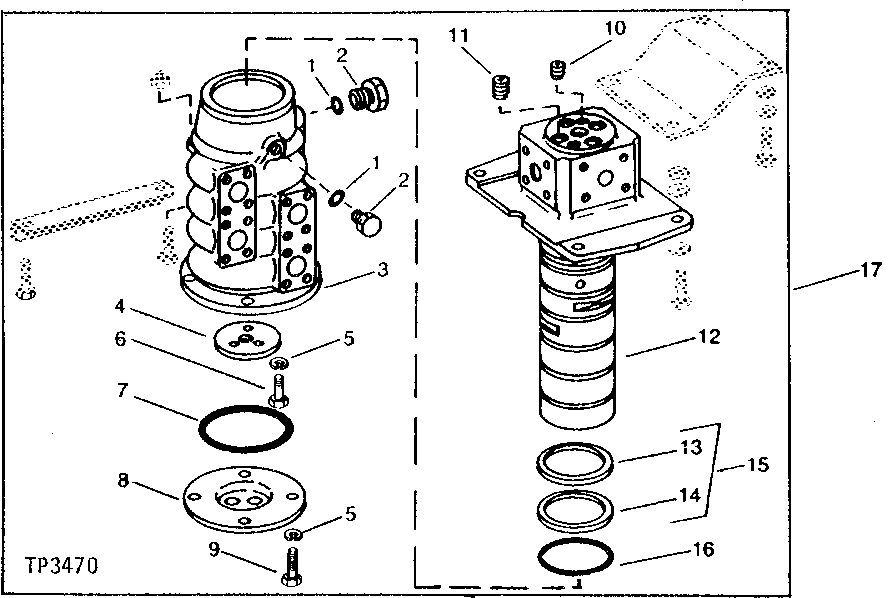

Запчасти John Deere 90 24 - ROTARY MANIFOLD 260 - AXLES AND SUSPENSION SYSTEMS 2

1

R26448

O-RING

2шт.

2

R27218

FITTING PLUG

2шт.

3

HYDRAULIC CYLINDER BARREL

( T71754 NO LONGER AVAILABLE) (SUB T81101 IF AVAILABLE)

1шт.

4

T40340

WASHER

1шт.

5

12H304

LOCK WASHER

3/8"

7шт.

24H1652

WASHER

13/32" X 11/16" X 7/64"

4шт.

6

19H2284

CAP SCREW

3/8" X 7/8"

3шт.

7

T38489

O-RING

1шт.

8

T70239

CAP

1шт.

9

19H3239

CAP SCREW

3/8" X 1-1/4"

4шт.

10

15H275

PIPE PLUG

1/4"

1шт.

11

15H690

PIPE PLUG

3/4", 3/4"

4шт.

12

SPINDLE

( T71753 AND T81100 NO LONGER AVAILABLE)

1шт.

13

SEAL

(SUB AT46130)

7шт.

WASHER

(SUB AT46130)

6шт.

14

SEAL

(SUB AT46130)

7шт.

WASHER

(SUB AT46130)

6шт.

15

AT46130

SEAL KIT

7шт.

16

A5598R

O-RING

1шт.

17

AT68746

MANIFOLD

(SUB AT82136)

1шт.

AT82136

MANIFOLD

1шт.
