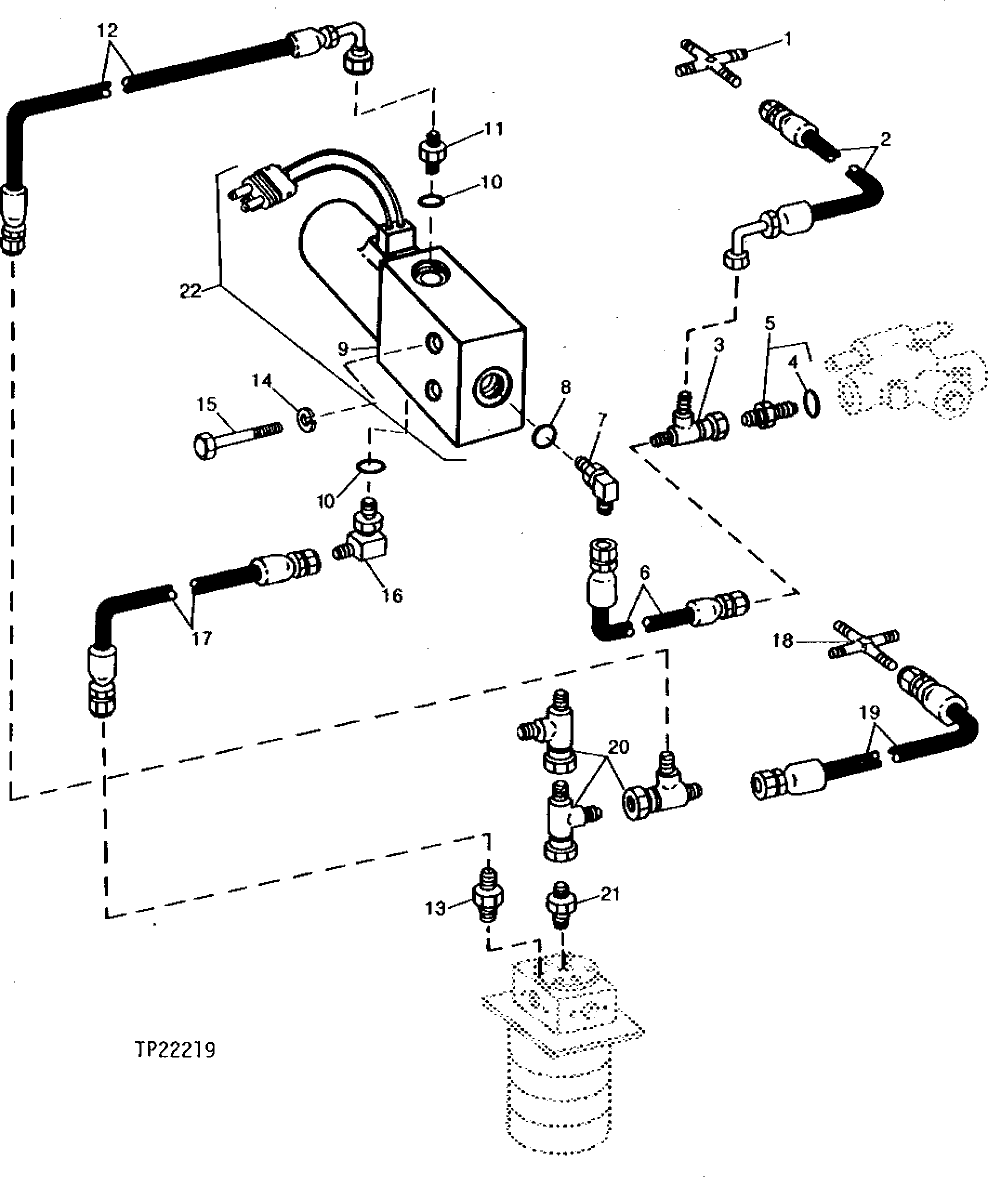

Запчасти John Deere 90 20 - LOW SPEED SOLENOID VALVE, HOSES AND FITTINGS 260 - AXLES AND SUSPENSION SYSTEMS 2

1

T71870

UNION FITTING

1шт.

2

AT68900

HYDRAULIC HOSE - FABRICATE

9/16" X 1 473 MM (58") X 9/16"

1шт.

3

AT36921

TEE FITTING

1шт.

4

R26286

O-RING

1шт.

5

R36426

FITTING

1шт.

6

AT37051

HYDRAULIC HOSE - FABRICATE

9/16" X 711 MM (28") X 9/16"

1шт.

7

AR31674

FITTING

1шт.

8

R47150

O-RING

1шт.

9

T107202

HOUSING

(SUB AT116486) (SUB FOR T72713 AND T78580 ALONG WITH (2) 24M7055) (NO LONGER FOR SERVICE)

1шт.

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

AT140041

ELECTRICAL COIL

1шт.

10

T70177

O-RING

2шт.

11

R39249

ADAPTER FITTING

1шт.

12

AT48430

HYDRAULIC HOSE - FABRICATE

3/4" X 866 MM (34") X 3/4"

1шт.

13

R26892

FITTING

1шт.

14

12H304

LOCK WASHER

3/8"

2шт.

15

19H3031

CAP SCREW

3/8" X 2-1/2"

2шт.

16

AT35121

ELBOW FITTING

1шт.

17

AT48433

HYDRAULIC HOSE - FABRICATE

9/16" X 838 MM (33") X 9/16"

1шт.

18

T72256

UNION FITTING

1шт.

19

AT69352

HYDRAULIC HOSE - FABRICATE

3/4" X 1 350 MM (53-1/4") X 3/4"

1шт.

20

AN33434

TEE FITTING

(SUB FOR AT43681, THIS APPLICATION)

3шт.

21

N111876

ADAPTER FITTING

1шт.

22

AT116486

ELEC.PROPORTIONAL VALVE

(SUB FOR AT115437)

1шт.

AT115457

SOLENOID VALVE

(CARTRIDGE)(ONLY FOR USE WITH AT115437)

1шт.

23

AT140041

ELECTRICAL COIL

1шт.
