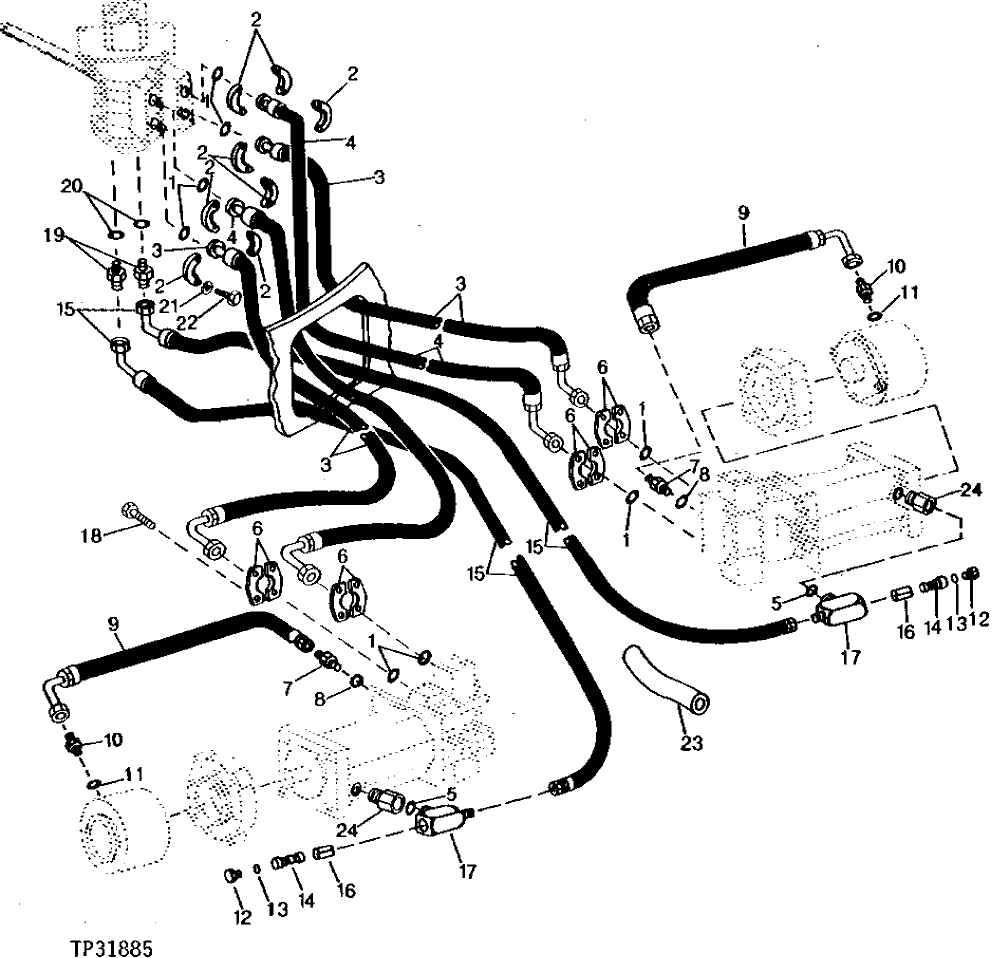

Запчасти John Deere 90 17A - UNDERCARRIAGE HYDRAULICS 260 - AXLES AND SUSPENSION SYSTEMS 2

1

T72216

O-RING

8шт.

2

R29867

FLANGE FITTING

8шт.

3

AT85195

HYDRAULIC HOSE - FABRICATE

1-1/4" X 1 500 MM (59") X 1-1/4", (SUB FOR AT85194)

2шт.

4

AT85195

HYDRAULIC HOSE - FABRICATE

1-1/4" X 1 500 MM (59") X 1-1/4"

2шт.

5

R47151

O-RING

2шт.

6

T81202

FLANGE FITTING

8шт.

7

R27212

FITTING

2шт.

8

T70177

O-RING

2шт.

9

AT46298

HYDRAULIC HOSE - FABRICATE

9/16" X 965 MM (38") X 9/16"

2шт.

10

AT74884

CHECK VALVE

2шт.

11

R28782

O-RING

2шт.

12

R27175

DRAIN PLUG

2шт.

13

R47157

O-RING

2шт.

14

R64818

PLUG

2шт.

15

AT69326

HYDRAULIC HOSE - FABRICATE

3/4" X 2 210 MM (87") X 7/8"

2шт.

16

R67919

DISK SPRING

2шт.

17

AR78077

TEE FITTING

2шт.

18

19H2993

CAP SCREW

1/2" X 1-1/2"

16шт.

19

R27237

FITTING

2шт.

20

R47150

O-RING

2шт.

21

12H293

LOCK WASHER

7/16"

16шт.

22

19H3205

CAP SCREW

7/16" X 1-1/2"

16шт.

23

ISOLATOR

(MAKE FROM T68940 BULK MATERIAL, CUT TO LENGTH)

2шт.

24

T74543

ADAPTER FITTING

2шт.
