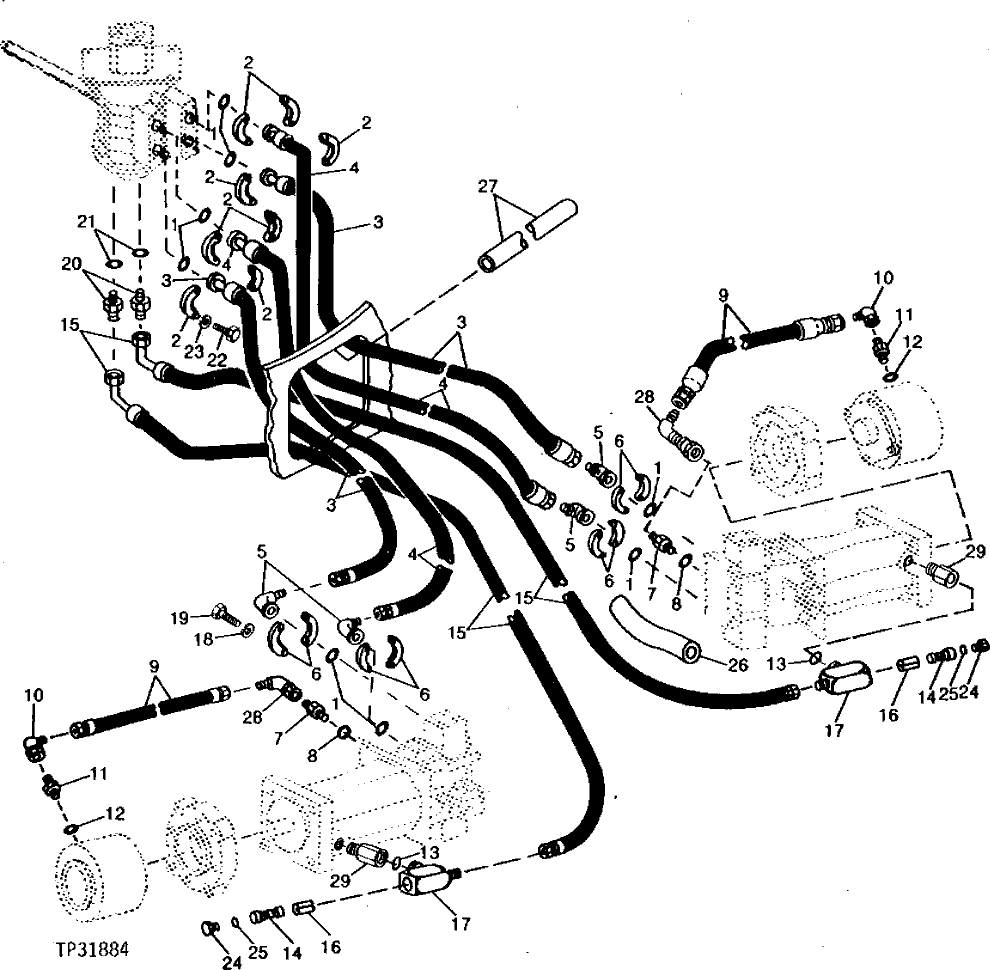

Запчасти John Deere 90 16 - UNDERCARRIAGE HYDRAULICS 260 - AXLES AND SUSPENSION SYSTEMS 2

1

T72216

O-RING

8шт.

2

R29867

FLANGE FITTING

8шт.

3

AT69323

HYDRAULIC HOSE

1-1/4" X 1 372 MM (54") X 1-5/8", (SUB AT85195) (ALSO ORDER (2) T81202)

2шт.

4

AT69714

HYDRAULIC HOSE

1-1/4" X 1 423 MM (56") X 1-5/8", (SUB FOR AT85195) (ALSO ORDER (2) T81202)

2шт.

5

AT69713

ADAPTER FITTING

(SUB AT85195 AND (2) T81202)

4шт.

6

AT131685

FLANGE FITTING

(SUB FOR T72217)

8шт.

7

R27212

FITTING

2шт.

8

T70177

O-RING

2шт.

9

AT69325

HYDRAULIC HOSE - FABRICATE

9/16" X 711 MM (28") X 9/16"

2шт.

10

AE24616

ELBOW FITTING

2шт.

11

AT71564

CHECK VALVE

2шт.

AT74884

CHECK VALVE

2шт.

12

R28782

O-RING

2шт.

13

R47151

O-RING

2шт.

14

R64818

PLUG

2шт.

15

AT69326

HYDRAULIC HOSE - FABRICATE

3/4" X 2 210 MM (87") X 7/8"

2шт.

16

R67916

SCREEN

2шт.

17

AR78077

TEE FITTING

2шт.

18

12H301

LOCK WASHER

1/2"

16шт.

19

19H2473

CAP SCREW

1/2" X 1-3/4"

16шт.

20

R27237

FITTING

2шт.

21

R47150

O-RING

2шт.

22

19H3205

CAP SCREW

7/16" X 1-1/2"

16шт.

23

12H293

LOCK WASHER

7/16"

16шт.

24

R27175

DRAIN PLUG

2шт.

25

R47157

O-RING

2шт.

26

ISOLATOR

(MAKE FROM T68940 BULK MATERIAL, CUT TO LENGTH)

1шт.

27

ISOLATOR

(MAKE FROM T68940 BULK MATERIAL, CUT TO LENGTH)

1шт.

28

AU43156

ELBOW FITTING

2шт.

29

T74543

ADAPTER FITTING

2шт.
