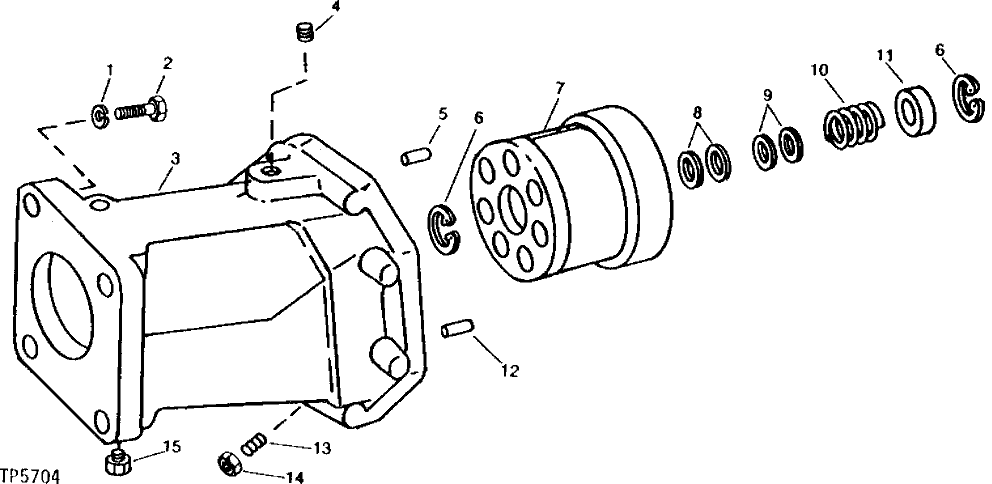

Запчасти John Deere 90 10 - PROPEL MOTOR HOUSING AND BLOCK 260 - AXLES AND SUSPENSION SYSTEMS 2

1

12H236

LOCK WASHER

3/4"

8шт.

2

19H2431

CAP SCREW

3/4" X 2-1/4", (SUB FOR 19H1782)

8шт.

3

AT72229

HOUSING

1шт.

4

T74561

FITTING

1шт.

5

44M7071

DOWEL PIN

M10 X 16

1шт.

6

40M7128

SNAP RING

M44 X 1.75

2шт.

7

T74534

CYLINDER BLOCK

1шт.

8

24M7275

SHIM

M18 X 25 X 0.1

ARшт.

9

24M7276

SHIM

M18 X 25 X 0.3

ARшт.

10

T74537

SPRING

1шт.

11

T74536

LOCKING COLLAR

1шт.

12

T74532

DOWEL PIN

1шт.

13

T74544

FITTING

1шт.

14

T74545

LOCK NUT

1шт.

15

T74543

ADAPTER FITTING

(SPECIAL TEE ( AR78077) TO MOTOR HOUSING)

1шт.
