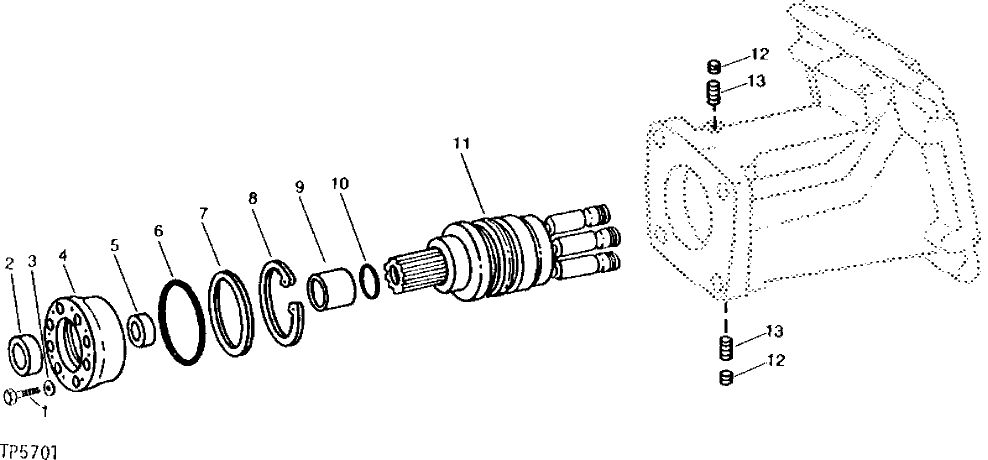

Запчасти John Deere 90 5 - PROPEL MOTOR 260 - AXLES AND SUSPENSION SYSTEMS 2

1

19M8129

SCREW

M8 X 70, M80 X 70

8шт.

2

E66752

WASHER

(USE WITH AT71569)

1шт.

3

T74554

WASHER

(K)

8шт.

4

T74540

FLANGE FITTING

1шт.

5

SEAL

(K) ( AT74309 USE IF AVAILABLE)

1шт.

6

T74547

O-RING

(K)

1шт.

7

T74562

WASHER

1шт.

8

T74499

SNAP RING

4.74 MM (0.186")

1шт.

T74500

SNAP RING

4.82 MM (0.189")

1шт.

T74501

SNAP RING

4.90 MM (0.192")

1шт.

T74502

SNAP RING

4.98 MM (0.196")

1шт.

T74503

SNAP RING

5.06 MM (0.199")

1шт.

T74504

SNAP RING

5.15 MM (0.202")

1шт.

9

T74505

SEAL

1шт.

10

T74555

O-RING

(K)

1шт.

11

AT72231

SHAFT

1шт.

12

22M7113

SET SCREW

M12 X 10

2шт.

13

22M7112

SET SCREW

M12 X 16

2шт.
