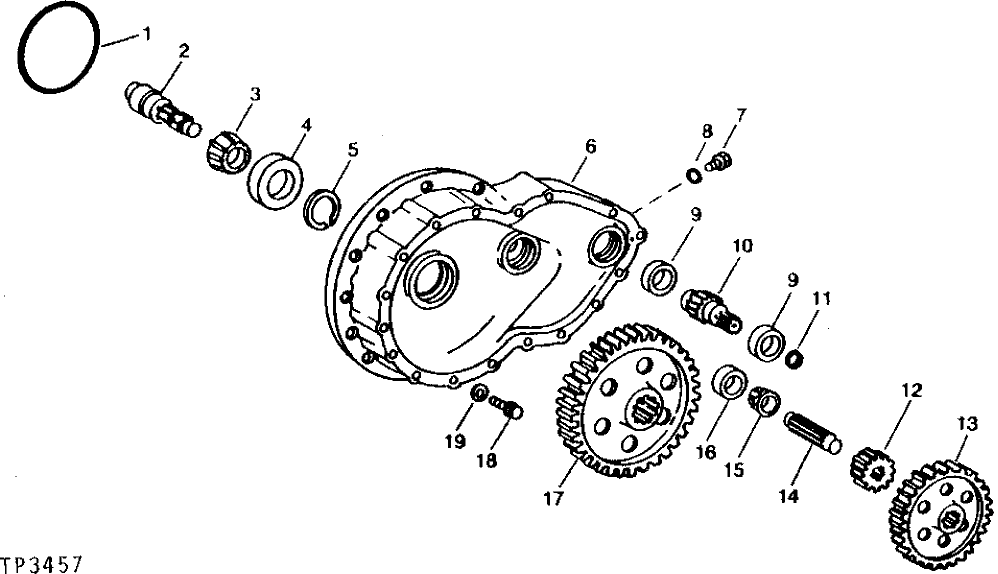

Запчасти John Deere 90 2 - PROPEL GEARBOX CASE AND GEARS 250 - AXLES AND SUSPENSION SYSTEMS 2

1

U42029

O-RING

1шт.

2

T74978

SHAFT

1шт.

3

JD9075

BEARING CONE

1шт.

4

JD9132

BEARING CUP

1шт.

5

F3669R

SNAP RING

1шт.

6

T39401

GEAR CASE

(USE IF AVAILABLE)

1шт.

7

R27094

DRAIN PLUG

1шт.

8

R26286

O-RING

1шт.

9

JD7682

BALL BEARING

2шт.

10

T47029

GEAR

(12 TEETH)

1шт.

11

AT40603

SEAL

1шт.

12

T24862

PINION

FINAL DRIVE

1шт.

13

T40533

GEAR

INTERMEDIATE (13 TEETH)

1шт.

14

T39405

SHAFT

INTERMEDIATE

1шт.

15

JD9027

BEARING CONE

1шт.

16

JD8223

BEARING CUP

1шт.

17

T29461

GEAR

FINAL DRIVE (56 TEETH)

1шт.

18

T40256

SCREW

9шт.

19

T76630

WASHER

(SUB FOR C12180) (SUB FOR M930T, THIS APPLICATION)

9шт.
