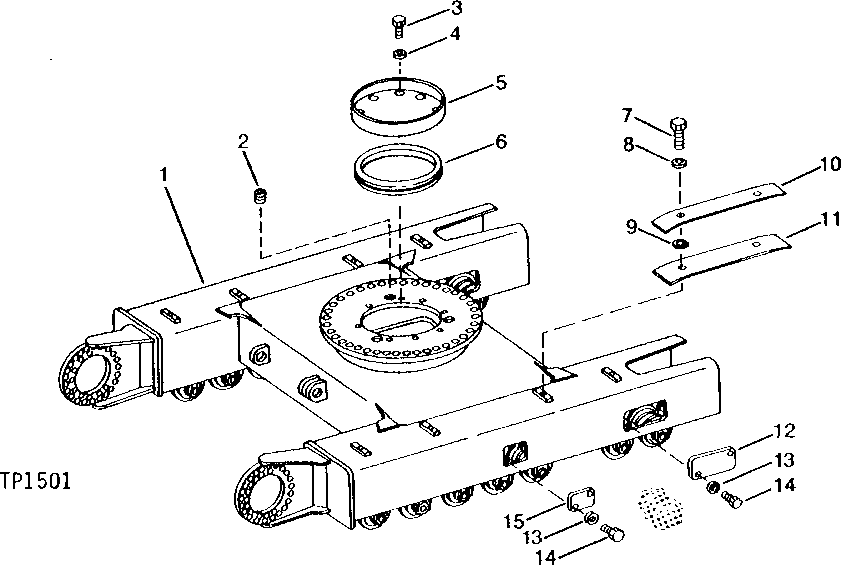

Запчасти John Deere 90 1 - UNDERCARRIAGE 130 - TRACKS 1

1

FRAME

INCLUDES ROLLERS ( AT69382 NO LONGER AVAILABLE)

1шт.

2

15H633

PIPE BUSHING

1-1/2"

3шт.

3

19H2941

SCREW

3/8" X 2", (SUB FOR M3660T)

8шт.

4

24H1301

WASHER

13/32" X 9/16" X 0.065"

8шт.

5

AT58174

GUARD

1шт.

6

CHANNEL

3 048 MM (120") LONG, (MAKE FROM T47640)

1шт.

7

19H2706

CAP SCREW

5/8" X 2"

8шт.

8

12H294

LOCK WASHER

5/8"

ARшт.

9

24H1106

WASHER

11/16" X 1-3/4" X 0.134"

8шт.

10

T47635

GUIDE

4шт.

11

T47636

GUIDE

4шт.

12

T51163

COVER

4шт.

13

24H1341

WASHER

17/32" X 15/16" X 0.060"

12шт.

14

19H1895

CAP SCREW

1/2" X 3/4"

12шт.

15

T47638

COVER

2шт.
