Запчасти John Deere 90 12 - SWING AND TRACK VALVE TO SWING MOTOR HYDRAULICS 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

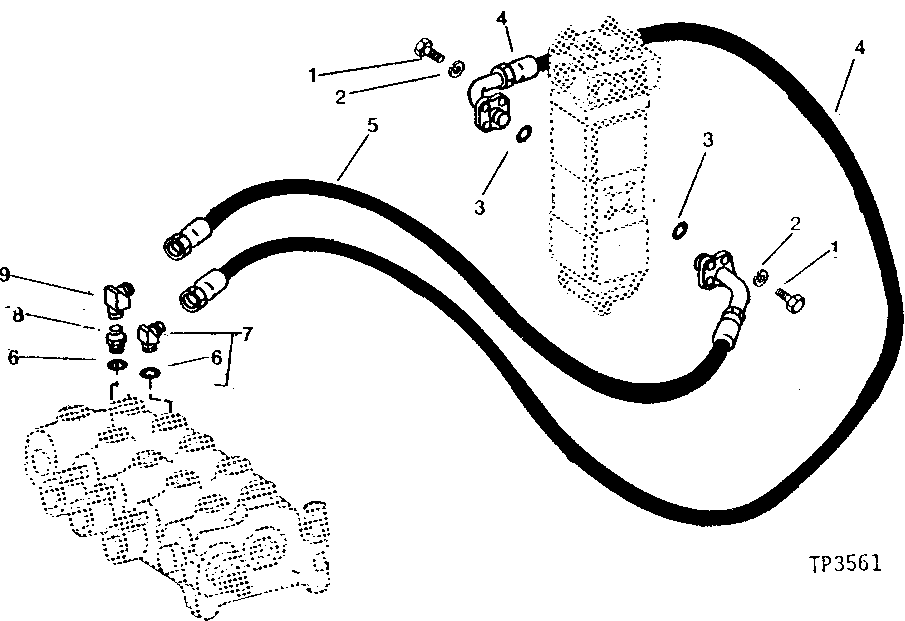

Схема запчастей John Deere 90 - 12 - SWING AND TRACK VALVE TO SWING MOTOR HYDRAULICS 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

Артикул

Название

Примечание

Количество

1

19H3205

CAP SCREW

7/16" X 1-1/2"

8шт.

2

12H293

LOCK WASHER

7/16"

8шт.

3

T72216

O-RING

2шт.

4

AT62618

HYDRAULIC HOSE - FABRICATE

1-5/16" X 1 803 MM (71") X 1-1/4"

1шт.

AT74576

HYDRAULIC HOSE - FABRICATE

1-5/16" X 1 750 MM (69") X 1-1/4"

1шт.

5

AT62619

HYDRAULIC HOSE

1-5/16" X 1 270 MM (50") X 1-1/4"

1шт.

AT74903

HYDRAULIC HOSE - FABRICATE

1-5/16" X 1 100 MM (43-1/4") X 1-1/4"

1шт.

6

R29936

O-RING

2шт.

7

AU43288

ELBOW FITTING

1шт.

8

T26767

FITTING

1шт.

9

X16V6X-S

ELBOW FITTING

(SUB FOR AT50992)

1шт.

Выбрано товаров: 11
