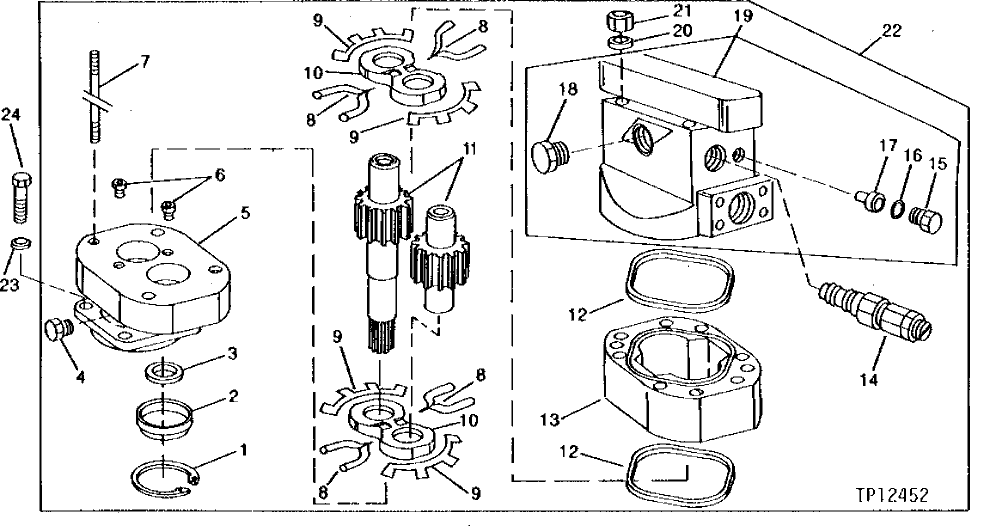

Запчасти John Deere 90 3A - SWING MOTORS 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

P46407

SNAP RING

1шт.

2

T81116

RETAINER

1шт.

3

T81115

SEAL

(K)

1шт.

4

15H275

PIPE PLUG

1/4"

1шт.

5

COVER

SHAFT END ( AT82154 NO LONGER AVAILABLE, SUB AT77614)

1шт.

6

AT41495

CHECK VALVE

1шт.

7

T81117

ROD

4шт.

8

SEAL

(K) (SUB AT115135)

4шт.

9

SEAL

(K) (SUB AT115135)

4шт.

10

PLATE

(K) THRUST, (SUB AT115135)

2шт.

11

GEAR

MATCHED SET, (SUB AT77614)

1шт.

12

PACKING

(K) (SUB AT115135)

2шт.

13

HOUSING

(SUB AT77614)

1шт.

14

AT82156

PRESSURE RELIEF VALVE

CROSSOVER

2шт.

15

R27218

FITTING PLUG

2шт.

16

R26448

O-RING

2шт.

17

AT41495

CHECK VALVE

2шт.

18

15H275

PIPE PLUG

1/4", (SUB FOR E62155, THIS APPLICATION)

1шт.

19

COVER

PORT END (FRONT MOTOR) (USE WITH AT105372) ( AT115571 USE IF AVAILABLE)

1шт.

COVER

(REAR MOTOR) ( AT82157 NO LONGER AVAILABLE, SUB AT77614)

1шт.

20

24M7241

WASHER

17 X 34 X 4 MM, (SUB FOR T40728)

4шт.

21

14H1039

NUT

5/8"

4шт.

22

AT77614

HYDRAULIC MOTOR

(REAR)

1шт.

AT105372

HYDRAULIC MOTOR

(FRONT)

1шт.
