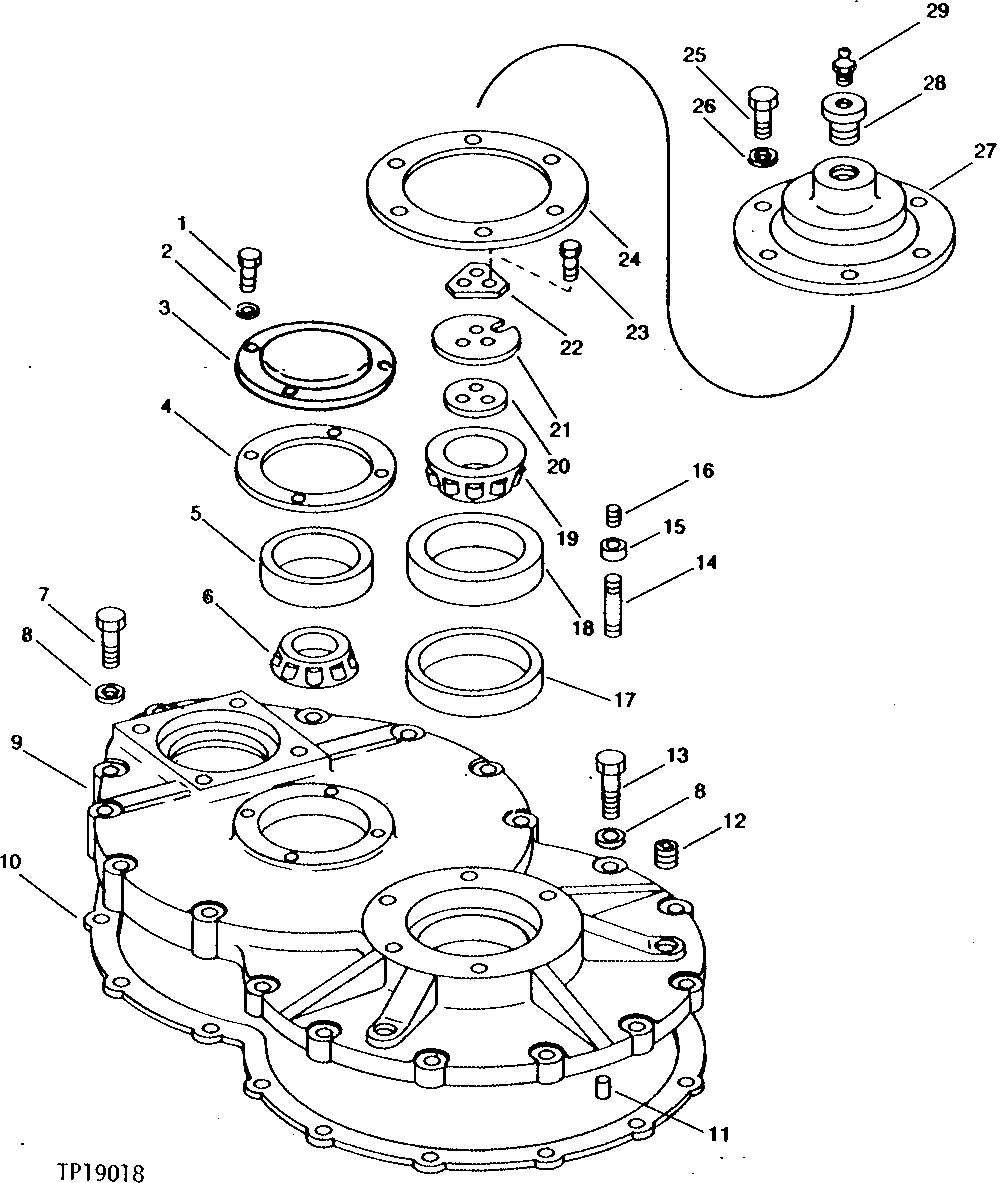

Запчасти John Deere 90 4 - SWING GEARBOX COVER 4350 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

19H3239

CAP SCREW

3/8" X 1-1/4"

4шт.

2

24H1301

WASHER

13/32" X 9/16" X 0.065"

4шт.

3

T39408

BEARING HOUSING W/O BEARING

1шт.

4

SHIM

(A) 0.19 MM (.0075") ( T39409 NO LONGER AVAILABLE)

3шт.

SHIM

(A) 0.13 MM (.005") ( T39410 NO LONGER AVAILABLE)

3шт.

SHIM

(A) 0.51 MM (.020") ( T39411 NO LONGER AVAILABLE)

1шт.

5

JD8223

BEARING CUP

1шт.

6

JD9027

BEARING CONE

1шт.

7

19H2965

CAP SCREW

1/2" X 3-1/2"

7шт.

19H3550

CAP SCREW

HS, SAE 8, 1/2" X 4"

2шт.

8

24H1227

WASHER

17/32" X 13/16" X 0.060"

17шт.

9

T72157

COVER

(SUB FOR R36666, THIS APPLICATION)

1шт.

10

T39403

GASKET

1шт.

11

R26198

DOWEL PIN

2шт.

12

15H562

PIPE PLUG

1"

3шт.

13

19H2735

CAP SCREW

1/2" X 2"

8шт.

14

29H761

THREADED NIPPLE

1", 3/4" X 1"

1шт.

15

T41645

FITTING

1" X 5"

1шт.

16

U14273

BREATHER

1шт.

17

T40693

SPACER

1шт.

18

JD8255

BEARING CUP

1шт.

19

JD8941

BEARING CONE

1шт.

20

SHIM

(B) (0.51 MM, .020 INCHES) ( T39416 NO LONGER AVAILABLE)

2шт.

SHIM

(B) (0.19 MM, .0075 INCHES) (T39417 NO LONGER AVAILABLE)

2шт.

SHIM

(B) (0.13 MM, .005 INCHES) ( T39418 NO LONGER AVAILABLE)

2шт.

21

T39415

WASHER

1шт.

22

T19583

WASHER

3шт.

23

19H3617

CAP SCREW

7/16" X 1-1/8"

3шт.

24

T39421

GASKET

1шт.

25

19H2898

CAP SCREW

HS, SAE 8, 1/2" X 1-1/4"

6шт.

26

24H1227

WASHER

17/32" X 13/16" X 0.060"

6шт.

27

T39420

BEARING HOUSING W/O BEARING

1шт.

28

15H518

PIPE BUSHING

1/8"

1шт.

29

JD7763

LUBRICATION FITTING

3/4" X 1/8"

1шт.
