Запчасти John Deere 90 78 - BUCKET CYLINDER STANDARD DIPPERSTICK HYDRAULICS 3360 - EXCAVATOR 33

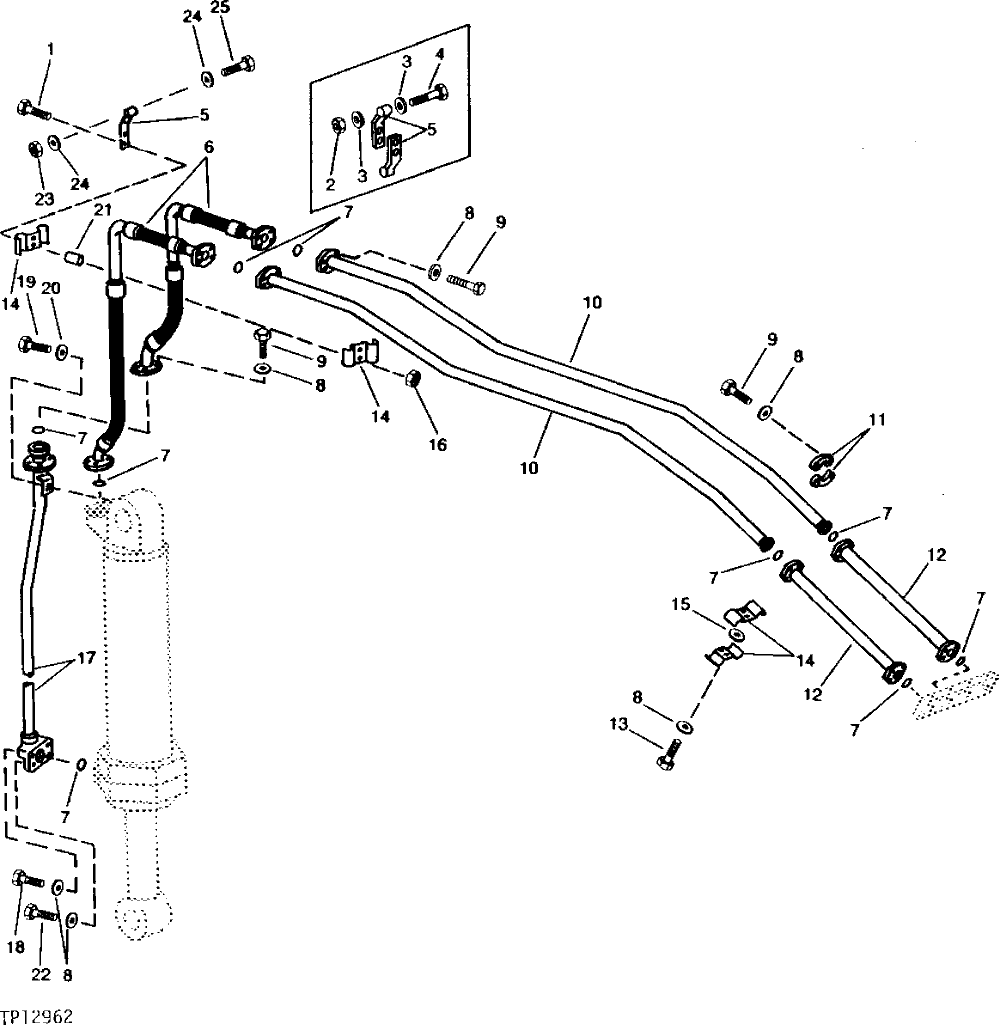

Схема запчастей John Deere 90 - 78 - BUCKET CYLINDER STANDARD DIPPERSTICK HYDRAULICS 3360 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

1

19H1004

CAP SCREW

1/2" X 2-1/4"

2шт.

2

H32811

LOCK NUT

2шт.

3

E14275

WASHER

4шт.

4

19H2644

CAP SCREW

1/2" X 2-1/2"

2шт.

5

AT58140

GUARD

2шт.

6

AT46316

HYDRAULIC HOSE

2шт.

7

T72221

O-RING

(SUB FOR T34248, THIS APPLICATION)

9шт.

8

12H301

LOCK WASHER

1/2"

36шт.

9

19H2993

CAP SCREW

1/2" X 1-1/2"

24шт.

10

AT46319

TUBE

2шт.

11

X51H-24

FLANGE FITTING

(SUB FOR T47649)

4шт.

12

AT46311

LINE

2шт.

13

19H2473

CAP SCREW

1/2" X 1-3/4"

8шт.

14

T47654

CLAMP

14шт.

15

T20168

WASHER

7шт.

16

14H1040

NUT

1/2"

2шт.

17

AT46317

LINE

1шт.

18

19H1820

CAP SCREW

1/2" X 3"

2шт.

19

19H3472

CAP SCREW

5/8" X 9-3/4"

1шт.

20

24H1227

WASHER

17/32" X 13/16" X 0.060"

1шт.

21

28H2539

BUSHING

0.546" X 0.840" X 15/16", (SUB FOR 28H2552, THIS APPLICATION) 1/2" X 1-1/8"

2шт.

22

19H2473

CAP SCREW

1/2" X 1-3/4", (SUB FOR 19H1777)

2шт.

23

H32811

LOCK NUT

1шт.

24

E14275

WASHER

2шт.

25

19H2644

CAP SCREW

1/2" X 2-1/2"

1шт.

Выбрано товаров: 25
