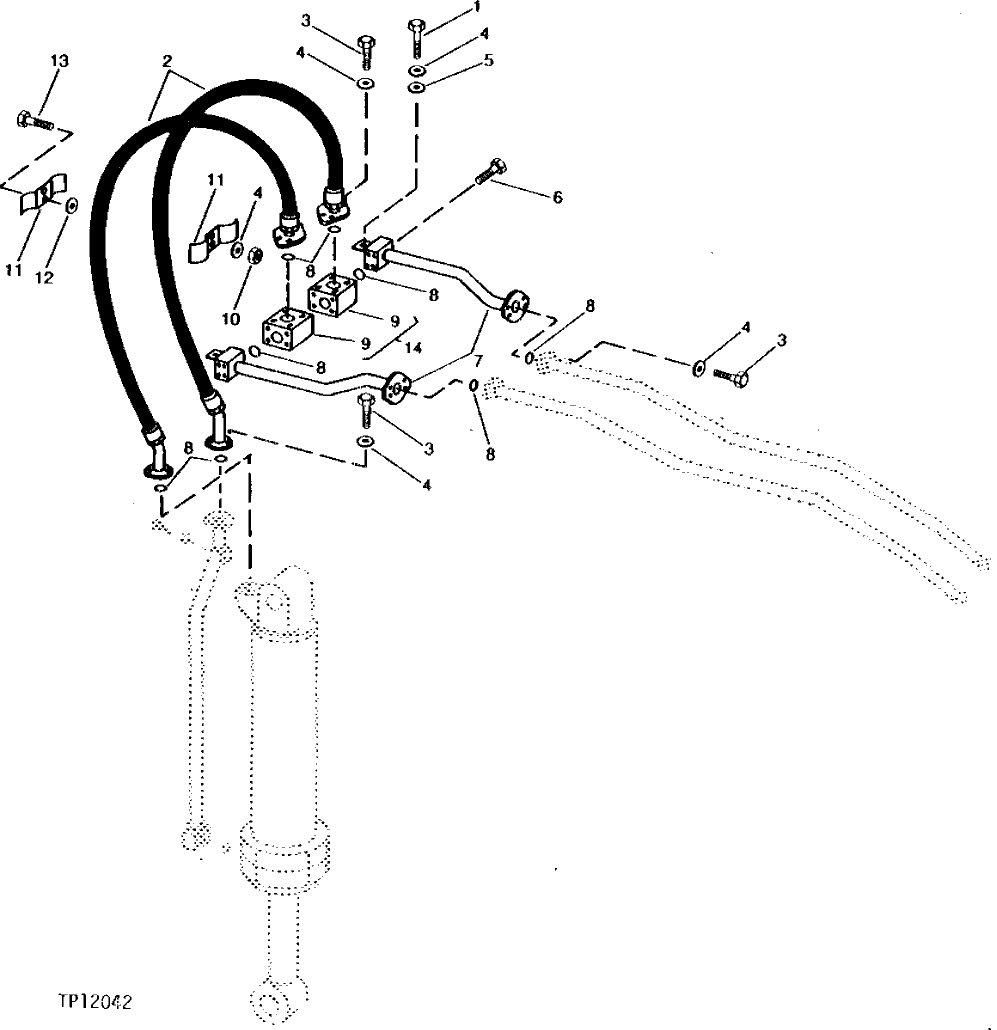

Запчасти John Deere 90 76 - BUCKET CYLINDER SHORT DIPPERSTICK HYDRAULICS 3360 - EXCAVATOR 33

1

19H2473

CAP SCREW

1/2" X 1-3/4"

2шт.

2

AT65452

HYDRAULIC HOSE

2шт.

3

19H2993

CAP SCREW

1/2" X 1-1/2"

24шт.

4

12H301

LOCK WASHER

1/2"

28шт.

5

24H1111

WASHER

17/32" X 1-1/16" X 0.090"

2шт.

6

19H3033

SCREW

1/2" X 2"

8шт.

7

AT65454

TUBE

2шт.

8

T72221

O-RING

(SUB FOR T34248, THIS APPLICATION)

8шт.

9

AT65453

SWIVEL

2шт.

10

14H1040

NUT

1/2"

2шт.

11

T47654

CLAMP

2шт.

12

T20168

WASHER

2шт.

13

19H2644

CAP SCREW

HS, SAE 8, 1/2" X 2-1/2"

2шт.

14

AT79006

SEAL KIT

1шт.
