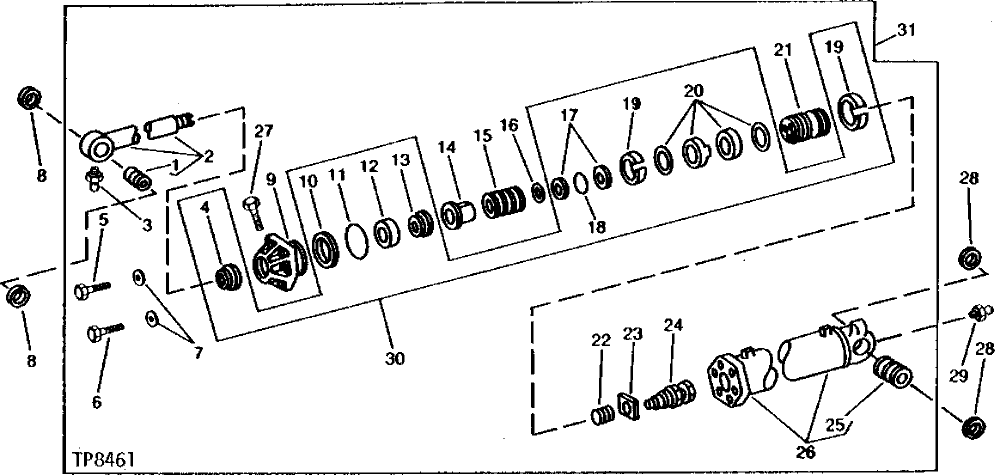

Запчасти John Deere 90 62 - BUCKET CYLINDER 3360 - EXCAVATOR 33

1

R77569

BUSHING

1шт.

2

AR102094

ROD

1шт.

3

JD7759

LUBRICATION FITTING

1/8", GREASE, STRAIGHT

1шт.

4

T46617

SEAL

(RK)

1шт.

5

19H3313

CAP SCREW

1" X 4-1/2"

4шт.

6

19H3314

SCREW

1" X 5-1/4"

2шт.

7

T30636

WASHER

6шт.

8

T72099

SEAL

2шт.

9

R82282

HYDR. CYLINDER ROD GUIDE

(SUB FOR T46616)

1шт.

10

R78807

BACK-UP RING

(BK)

1шт.

11

T46620

O-RING

(BK)

1шт.

12

T46618

WEAR RING

(RK)

1шт.

13

R76773

SEAL

(RK)

1шт.

14

T57334

BUSHING

1шт.

15

T46626

SPRING

1шт.

16

T46629

WEAR RING

1шт.

17

R78808

BACK-UP RING

(RK) (SUB FOR T59925)

2шт.

18

T59924

RING

(RK)

1шт.

19

R77642

RING

(BK)

2шт.

20

RE11563

SEAL

(BK)

1шт.

21

R77651

PISTON

1шт.

22

T58997

SPRING

1шт.

23

T57335

STRAP

1шт.

24

AT56647

POPPET

1шт.

25

T46610

BUSHING

1шт.

26

RE13868

HYDRAULIC CYLINDER BARREL

(SUB FOR AR96279)

1шт.

27

19H1895

CAP SCREW

1/2" X 3/4"

2шт.

28

T46611

SEAL

2шт.

29

JD7759

LUBRICATION FITTING

1/8", STRAIGHT (SUB FOR JD7781, 1/8", 90°, THIS APPLICATION)

1шт.

30

RE11587

KIT

(SUB RE14032 AND RE14033)

1шт.

31

RE11570

HYDRAULIC CYLINDER

(SUB RE21207)

1шт.
