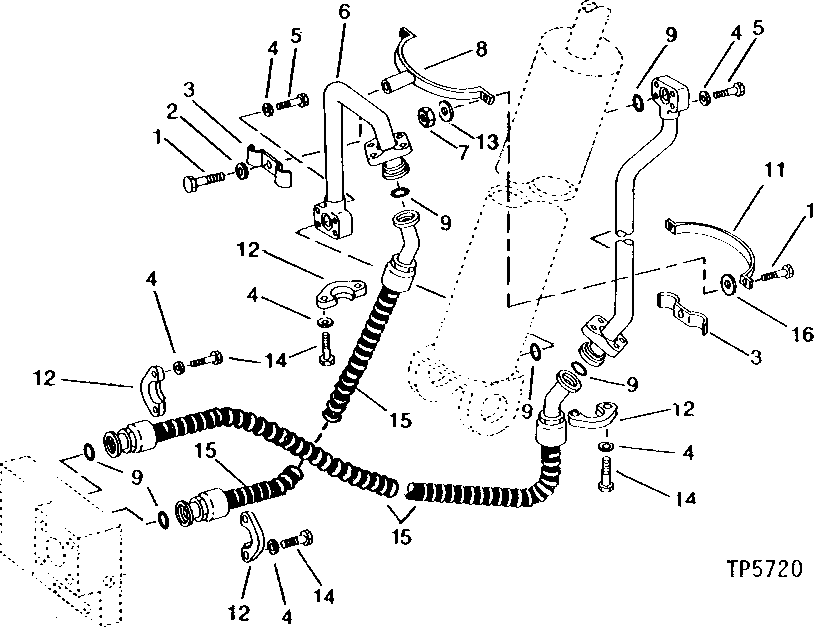

Запчасти John Deere 90 58 - JUNCTION BLOCK TO BOOM CYLINDERS HYDRAULICS 3360 - EXCAVATOR 33

1

19H2473

CAP SCREW

1/2" X 1-3/4"

6шт.

2

12H301

LOCK WASHER

1/2"

2шт.

3

T52685

CLAMP

4шт.

4

12H293

LOCK WASHER

7/16"

48шт.

5

19H2106

CAP SCREW

7/16" X 2-3/4"

16шт.

6

AT46580

TUBE

R.H. CYLINDER

1шт.

AT46582

OIL LINE

L.H. CYLINDER

1шт.

7

K40014

LOCK NUT

(SUB FOR BP12214, THIS APPLICATION)

4шт.

8

AT46584

CLAMP

2шт.

9

T72216

O-RING

12шт.

10

AT46581

LINE

R.H. CYLINDER

1шт.

AT46583

OIL LINE

L.H. CYLINDER

1шт.

11

T48067

CLAMP

2шт.

12

R29867

FLANGE FITTING

16шт.

13

24H1111

WASHER

17/32" X 1-1/16" X 0.090"

4шт.

14

19H3205

CAP SCREW

7/16" X 1-1/2"

32шт.

15

AT46579

HYDRAULIC HOSE - FABRICATE

4шт.

16

24H1211

WASHER

9/16" X 1-3/8" X 0.105"

16шт.
