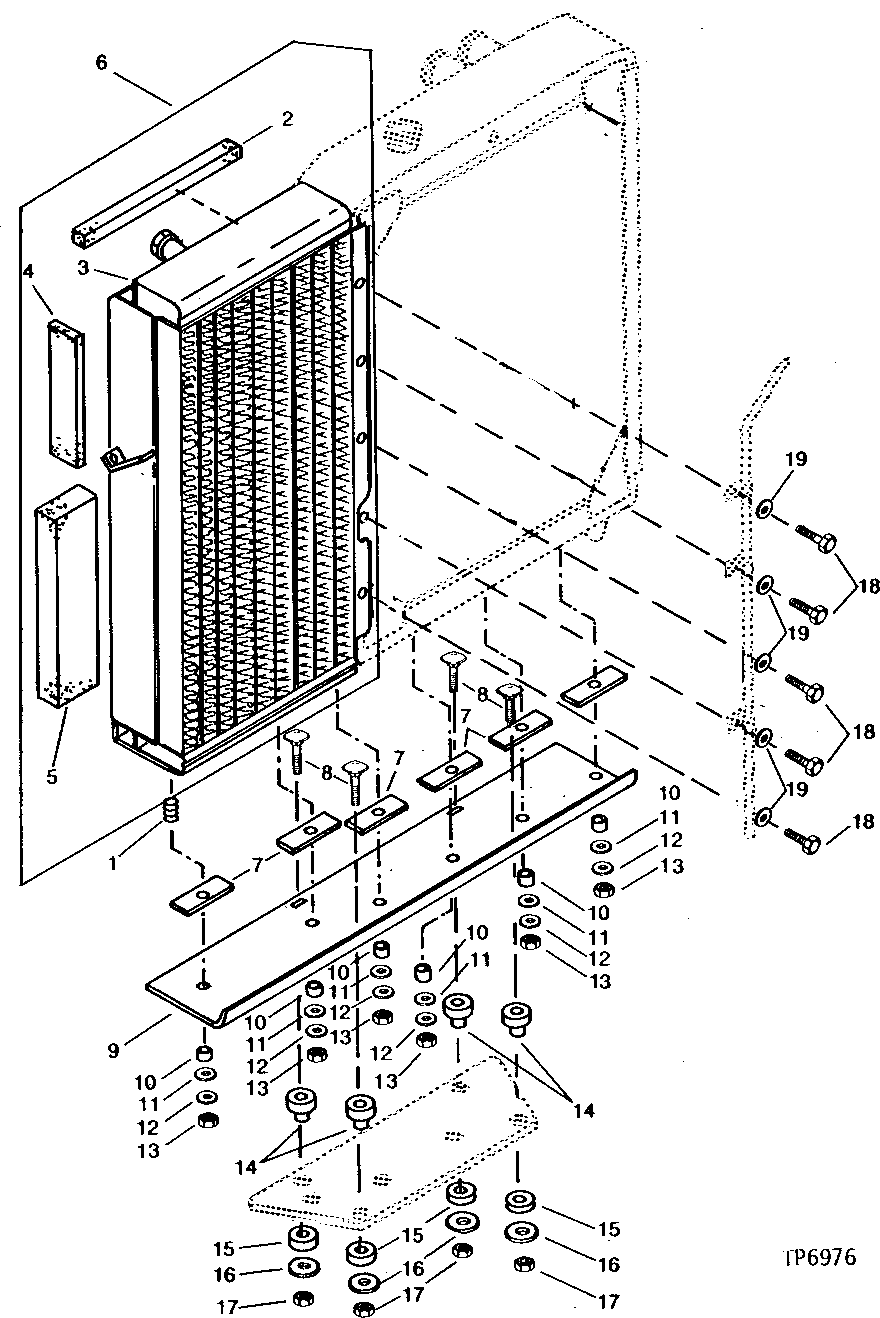

Запчасти John Deere 90 40 - HYDRAULIC OIL COOLER 3360 - EXCAVATOR 33

1

R32101

STUD

2шт.

2

R30937

ISOLATOR

1шт.

3

OIL COOLER

(SUB AT68794)

1шт.

4

T54772

ISOLATOR

1шт.

5

T52863

FOAM PAD

1шт.

6

AT68794

OIL COOLER

(SUB AT75865, AT72243, AT72244 AND (2) R47156)

1шт.

AT75865

OIL COOLER

1шт.

7

U45318

STRAP

6шт.

8

03H1596

BOLT

1/2" X 3-1/4"

4шт.

9

T72134

SUPPORT

1шт.

10

M43318

BUSHING

6шт.

11

U45315

WASHER

6шт.

12

24H1204

WASHER

9/16" X 1-15/32" X 0.075"

6шт.

13

14H1040

NUT

1/2"

6шт.

14

AT169186

ISOLATOR

(SUB FOR AT59650)

4шт.

15

ISOLATOR

(SUB AT59650)

4шт.

16

24H1346

WASHER

17/32" X 1-3/4" X 0.120"

4шт.

17

K40014

LOCK NUT

(SUB FOR BP12214, THIS APPLICATION)

4шт.

18

19H2284

CAP SCREW

3/8" X 7/8"

10шт.

19

R43696

WASHER

10шт.
