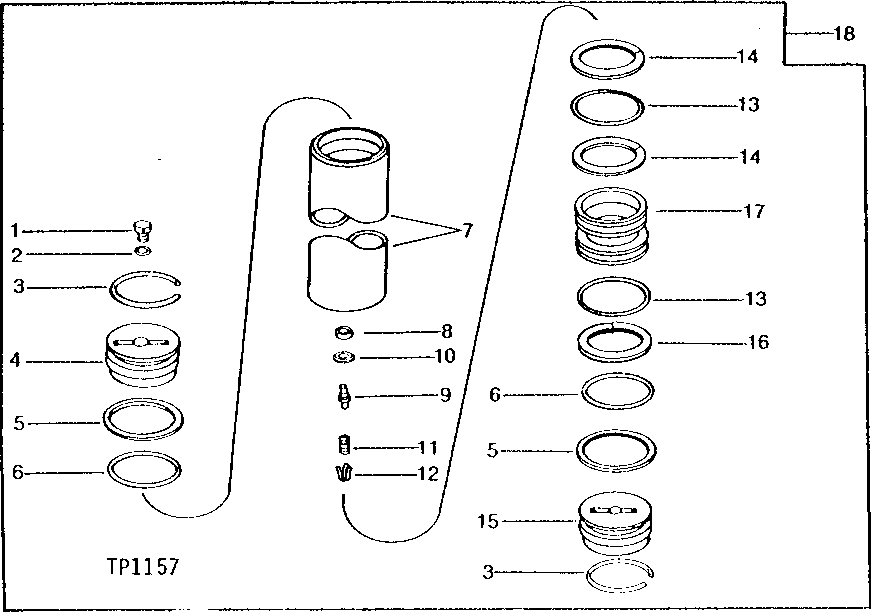

Запчасти John Deere 90 27 - HYDRAULIC ACCUMULATOR 3360 - EXCAVATOR 33

1

R27094

DRAIN PLUG

1шт.

2

R26286

O-RING

1шт.

3

U10136

SNAP RING

2шт.

R78101

SNAP RING

2шт.

4

R48957

END

1шт.

5

R78823

BACK-UP RING

(SUB FOR T35684, THIS APPLICATION)

2шт.

6

R86192

O-RING

(SUB FOR U12331)

2шт.

7

R46986

HYDRAULIC CYLINDER BARREL

1шт.

R77866

HYDRAULIC CYLINDER BARREL

1шт.

8

R60038

PACKING

1шт.

9

R47085

VALVE

1шт.

10

R47087

WASHER

1шт.

11

R47086

SPRING

1шт.

12

R41877

GUIDE

1шт.

13

A4728R

O-RING

2шт.

14

L29015

BACK-UP RING

2шт.

15

R47912

CAP

1шт.

16

R27649

BACK-UP RING

1шт.

17

R57103

PISTON

1шт.

18

AR46054

ACCUMULATOR

(SUB RE29331) (ALSO ORDER R80752 ENGLISH LABEL, R80753 SPANISH LABEL, R80754 FRENCH LABEL AND R82337 GERMAN LABEL AS REQUIRED)

1шт.

RE11966

ACCUMULATOR

(SUB RE29331) (ALSO ORDER R80752 ENGLISH LABEL, R80753 SPANISH LABEL, R80754 FRENCH LABEL AND R82337 GERMAN LABEL AS REQUIRED)

1шт.
