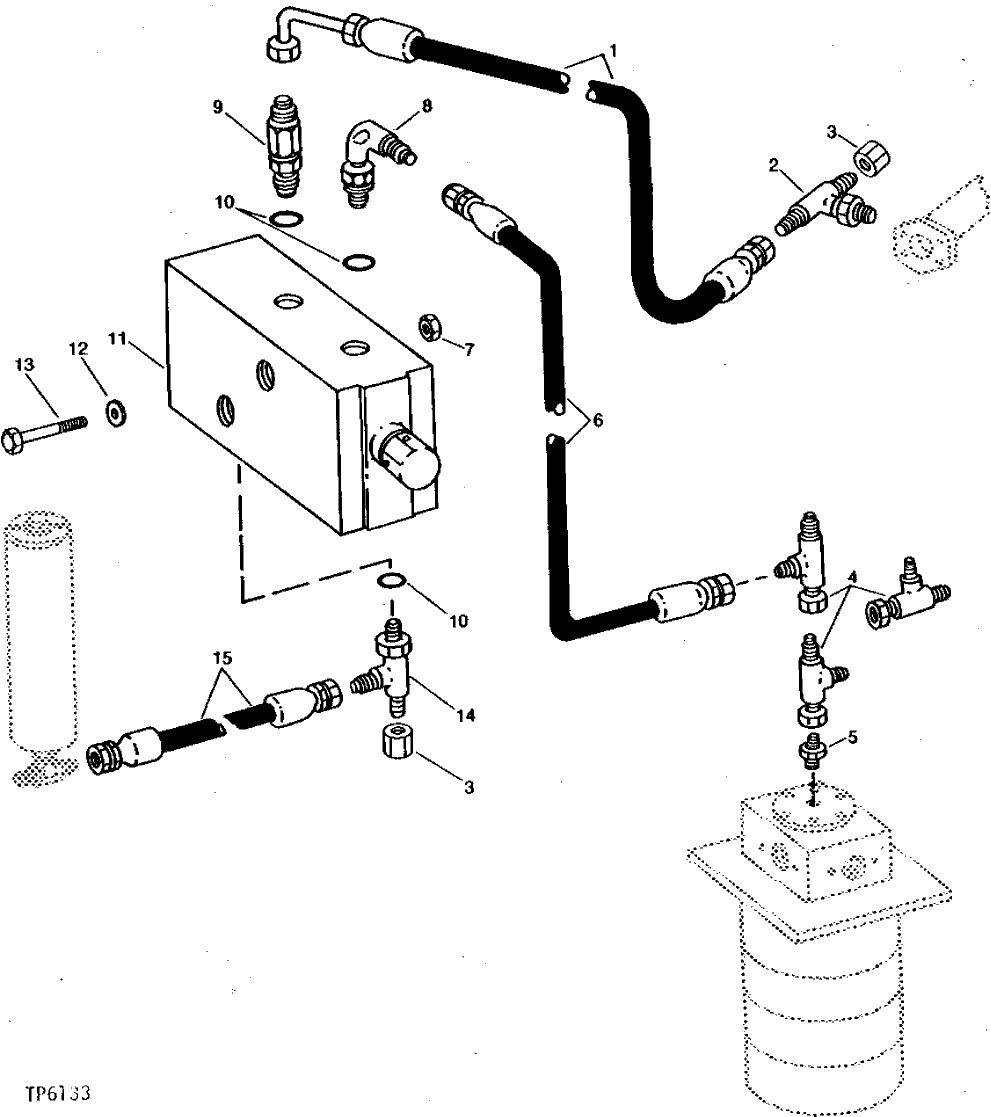

Запчасти John Deere 90 24 - PILOT CONTROL PRESSURE REDUCING CIRCUIT 3360 - EXCAVATOR 33

1

AT46298

HYDRAULIC HOSE - FABRICATE

9/16" X 965 MM (38") X 9/16", (SUB FOR AT70688)

1шт.

2

AU43507

TEE FITTING

1шт.

AT36465

TEE FITTING

1шт.

3

R39783

FITTING

2шт.

4

AN33434

TEE FITTING

(SUB FOR AT43681, THIS APPLICATION)

3шт.

5

N111876

ADAPTER FITTING

1шт.

6

AT69353

HYDRAULIC HOSE - FABRICATE

9/16" X 1 270 MM (50") X 3/4"

1шт.

7

14H786

NUT

1/4"

2шт.

8

AT35121

ELBOW FITTING

1шт.

9

AT69857

CHECK VALVE

1шт.

10

T70177

O-RING

3шт.

11

AT68904

HYDRAULIC PRESSURE VALVE

1шт.

12

24H1821

WASHER

9/32" X 47/64" X 1/16"

2шт.

13

19H2102

CAP SCREW

1/4" X 1-3/4"

2шт.

14

AT37518

TEE FITTING

1шт.

15

AT37543

HYDRAULIC HOSE - FABRICATE

9/16" X 483 MM (19") X 9/16"

1шт.
