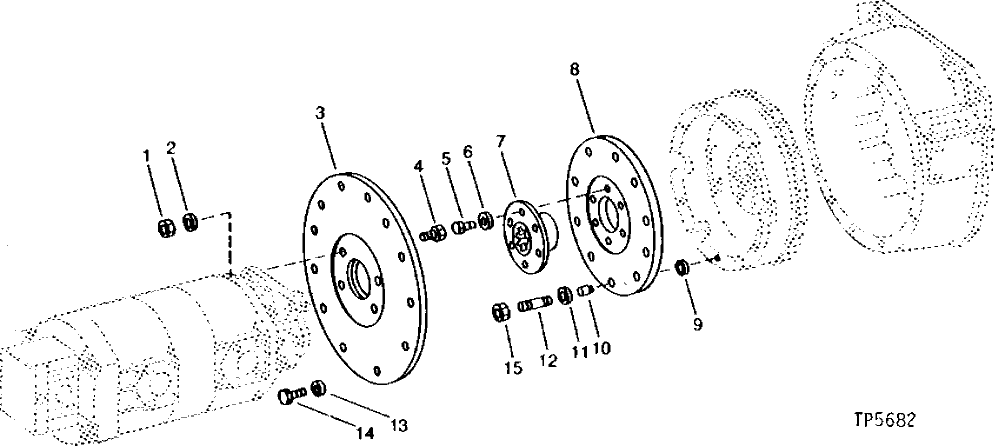

Запчасти John Deere 90 2 - HYDRAULIC PUMP DRIVE PLATE AND MOUNTING 3360 - EXCAVATOR 33

1

14H1040

NUT

1/2", (K1) (K2)

4шт.

2

T20168

WASHER

(K1) (K2)

4шт.

3

T62262

PLATE

1шт.

4

19H2880

CAP SCREW

1/2" X 1-3/4", (K1) (K2)

4шт.

19H3263

CAP SCREW

1/2" X 2-1/2"

4шт.

5

19H2898

CAP SCREW

1/2" X 1-1/4"

6шт.

6

T20168

WASHER

(K1) (K2)

6шт.

7

T72108

HUB

1шт.

8

T47065

PLATE

1шт.

9

24M7178

WASHER

10.500 X 30 X 2.500 MM

10шт.

10

T47063

ISOLATOR

10шт.

11

24M7296

WASHER

10.500 X 30 X 2.500 MM

10шт.

12

T63877

STUD

10шт.

13

24H1219

WASHER

7/16" X 1" X 0.083", (K1) (K2)

12шт.

T105740

WASHER

(USE WITH AT125476 PUMP)

12шт.

14

19H3104

CAP SCREW

7/16" X 1-1/4"

12шт.

19H3104

CAP SCREW

7/16" X 1-1/4", (USE WITH AT125476 PUMP)

12шт.

15

14H1053

NUT

3/8"

10шт.
