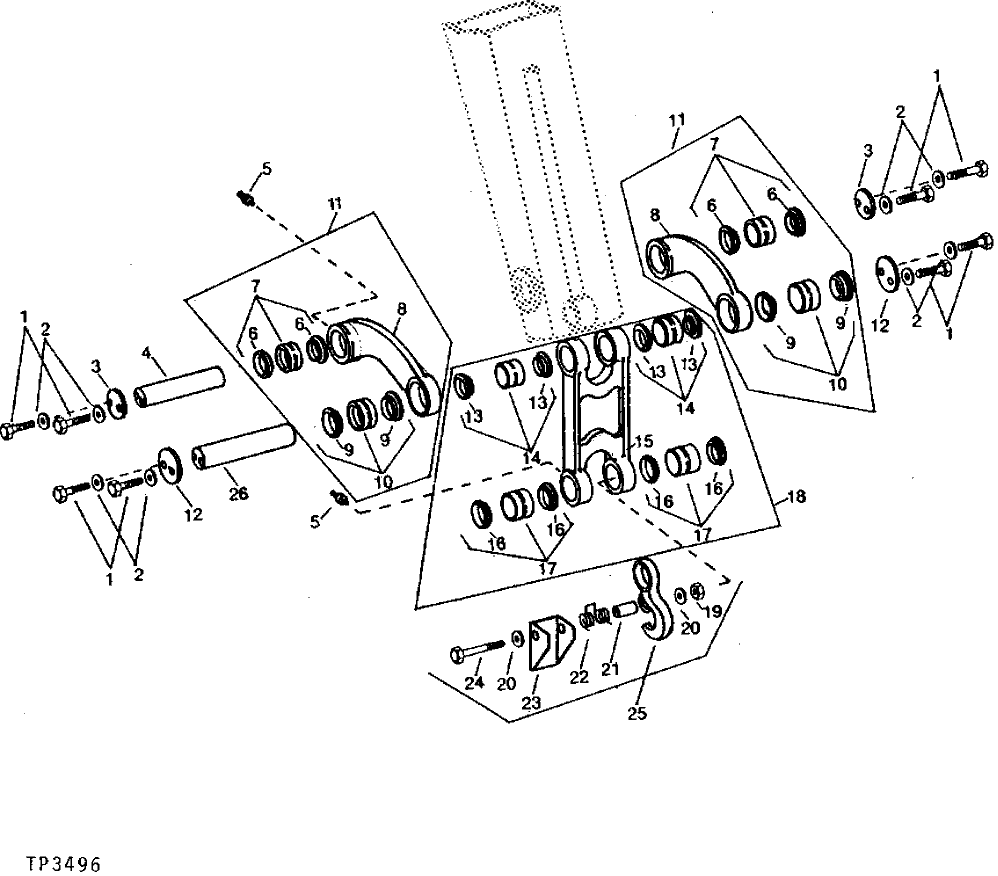

Запчасти John Deere 90 8 - BUCKET LINKS, LIFT HOOK AND CYLINDER PIN TO LINKS 3340 - EXCAVATOR 33

1

T55579

BOLT

8шт.

2

T17776

WASHER

8шт.

3

T48400

RETAINER

2шт.

4

T48399

PIN FASTENER

1шт.

5

JD7759

LUBRICATION FITTING

STRAIGHT, 1/8"

8шт.

6

T46611

SEAL

4шт.

7

BUSHING

(WHEN AT59239 IS NO LONGER AVAILABLE, SUB T58625 AND (2) T46613)

2шт.

8

LINK

( T72102 USE IF AVAILABLE)

2шт.

9

T72099

SEAL

4шт.

10

T72103

BUSHING

(SUB FOR AT69679, ALONG WITH (2) T72099)

2шт.

11

AT69151

LINK

2шт.

12

T47160

RETAINER

2шт.

13

T72099

SEAL

4шт.

14

BUSHING

( AT69678 AND T72101 IS NO LONGER AVAILABLE) (ORDER AT69150)

2шт.

15

LINK

( T72100 USE IF AVAILABLE)

1шт.

16

T46613

SEAL

4шт.

17

BUSHING

(WHEN AT59237 IS NO LONGER AVAILABLE, SUB T60119 AND (2) T46613)

2шт.

18

AT69150

LINK

1шт.

19

T11234

LOCK NUT

1шт.

20

24H1305

WASHER

13/32" X 13/16" X 0.065"

2шт.

21

T59304

BUSHING

1шт.

22

T59305

SPRING

1шт.

23

T59306

LATCH

1шт.

24

19H1912

CAP SCREW

3/8" X 3-1/2"

1шт.

25

AT56931

HOOK

1шт.

26

T72104

PIN

1шт.
