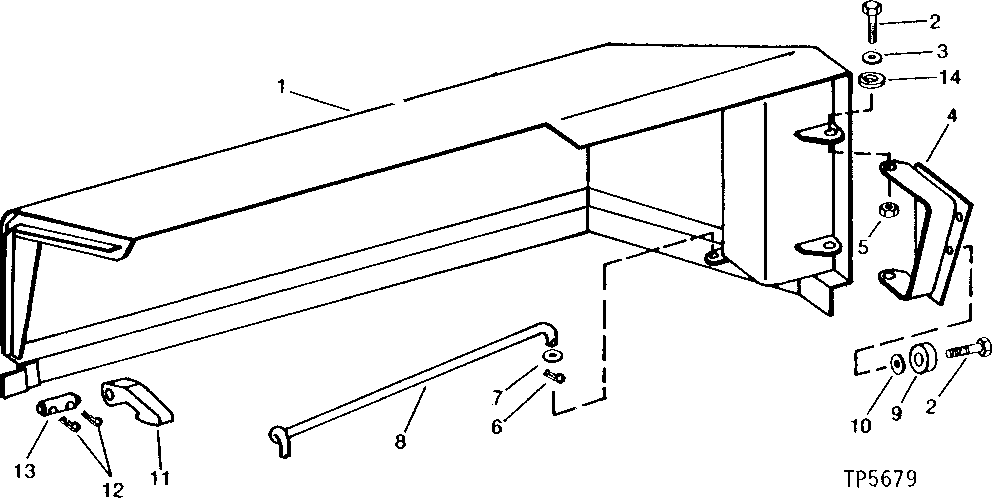

Запчасти John Deere 90 5 - LEFT FRONT FENDER 1927 - SHEET METAL AND STYLING 19

1

AT45816

FENDER

1шт.

2

19H3417

CAP SCREW

1" X 3", (HINGE BRACKET TO MAIN FRAME)

3шт.

19H1903

CAP SCREW

1" X 3-1/2", (HINGE PIVOTS)

2шт.

3

24H1452

WASHER

1-1/32" X 1-3/4" X 0.105"

4шт.

4

AT45817

HINGE

1шт.

5

14H1048

NUT

1"

3шт.

6

11M7030

COTTER PIN

5 X 40 MM

1шт.

7

24H1362

WASHER

41/64" X 1" X 0.075", (SUB FOR U46510)

1шт.

8

T47102

SUPPORT

1шт.

9

T35418

BUSHING

3шт.

10

T58089

WASHER

1.030" X 2-5/8" X 0.135", (BETWEEN HINGE AND MAIN FRAME)

ARшт.

T58089

WASHER

(SUB FOR T30636) (BETWEEN HINGE AND MAIN FRAME)

ARшт.

11

T74639

LATCH

(SUB FOR T67115)

1шт.

12

11M7015

COTTER PIN

3.200 X 25 MM

2шт.

13

U46245

PIN FASTENER

1шт.

14

T47095

BUSHING

2шт.
