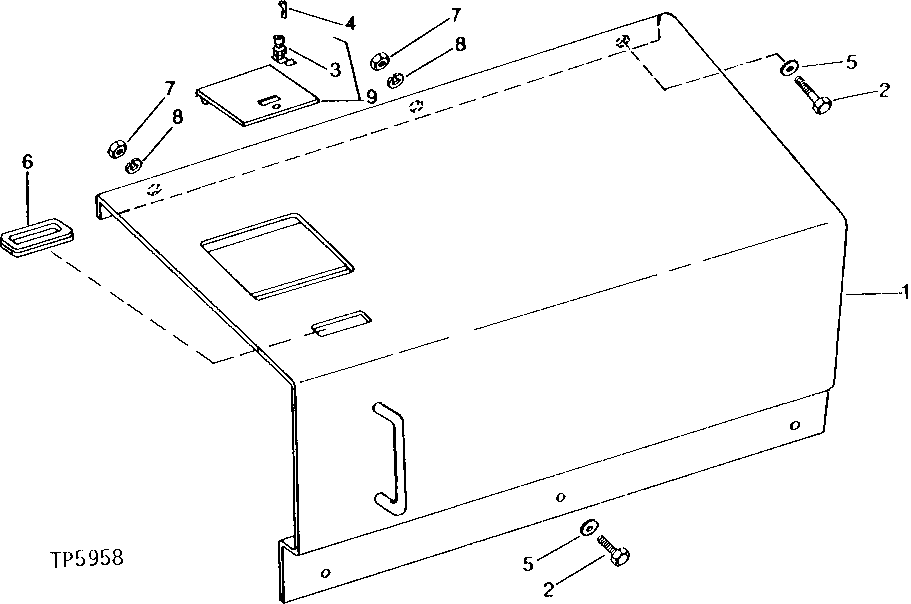

Запчасти John Deere 90 2 - RIGHT FRONT FENDER 1927 - SHEET METAL AND STYLING 19

1

AT45815

FENDER

1шт.

2

19H2676

CAP SCREW

3/8" X 1"

4шт.

3

AT38176

LOCK

1шт.

4

AT195302

KEY

(SUB FOR AR51481 AND AT145929)

1шт.

5

M1340T

WASHER

(FENDER TO MAIN FRAME)

1шт.

24H1304

WASHER

13/32" X 23/32" X 0.120", (FENDER TO RIGHT SKIRT SCREW)

3шт.

6

R20759

GROMMET

1шт.

7

T11234

LOCK NUT

2шт.

8

M1340T

WASHER

2шт.

9

AT42071

COVER

FUEL CAP, (SUB FOR AT61164)

1шт.
