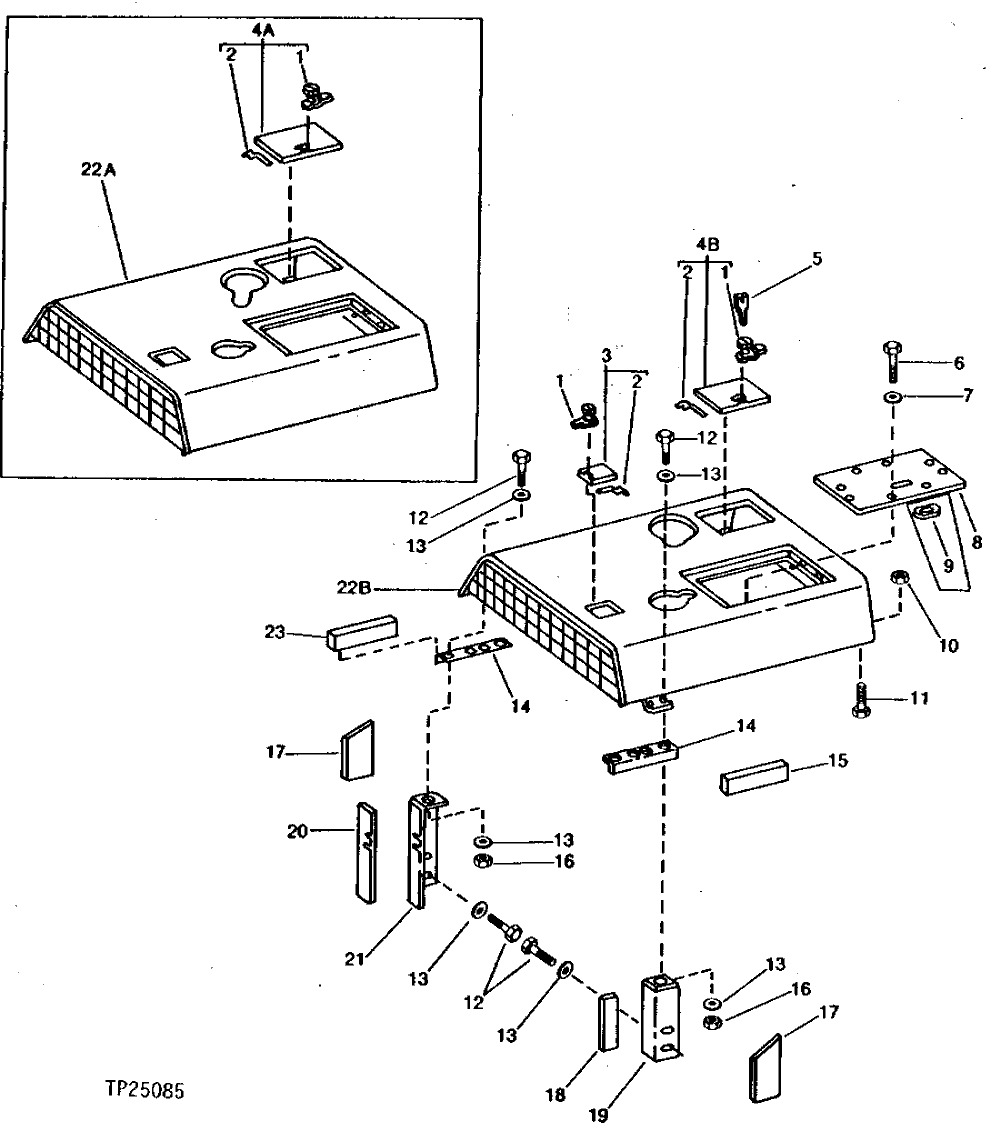

Запчасти John Deere 90 2 - HOOD 1910 - SHEET METAL AND STYLING 19

1

AT38176

LOCK

1шт.

2

T10379

CLAMP

4шт.

3

AT42072

COVER

RADIATOR CAP

1шт.

4A

AT69377

COVER

AIR CLEANER

1шт.

4B

AT71010

COVER

AIR CLEANER

1шт.

5

AT195302

KEY

(SUB FOR AR51481 AND AT145929)

1шт.

6

19H1919

CAP SCREW

1/4" X 5/8"

8шт.

7

24H1287

WASHER

8шт.

8

T72269

PANEL

1шт.

9

R20759

GROMMET

1шт.

10

T11234

LOCK NUT

2шт.

11

19H2633

CAP SCREW

3/8" X 1-1/2"

2шт.

12

19H2471

CAP SCREW

3/8" X 1-1/2"

8шт.

13

24H1304

WASHER

13/32" X 23/32" X 0.120"

12шт.

14

T57573

ANGLE

2шт.

15

T57574

ISOLATOR

2шт.

16

14H812

NUT

3/8"

4шт.

17

T59340

ISOLATOR

2шт.

18

T29482

ISOLATOR

1шт.

19

AT65234

SUPPORT

(SUB FOR AT66485)

1шт.

20

T68278

ISOLATOR

1шт.

21

AT65234

SUPPORT

1шт.

22A

AT69374

HOOD

(SUB AT71009 AND AT71010)

1шт.

22B

AT71009

HOOD

1шт.
