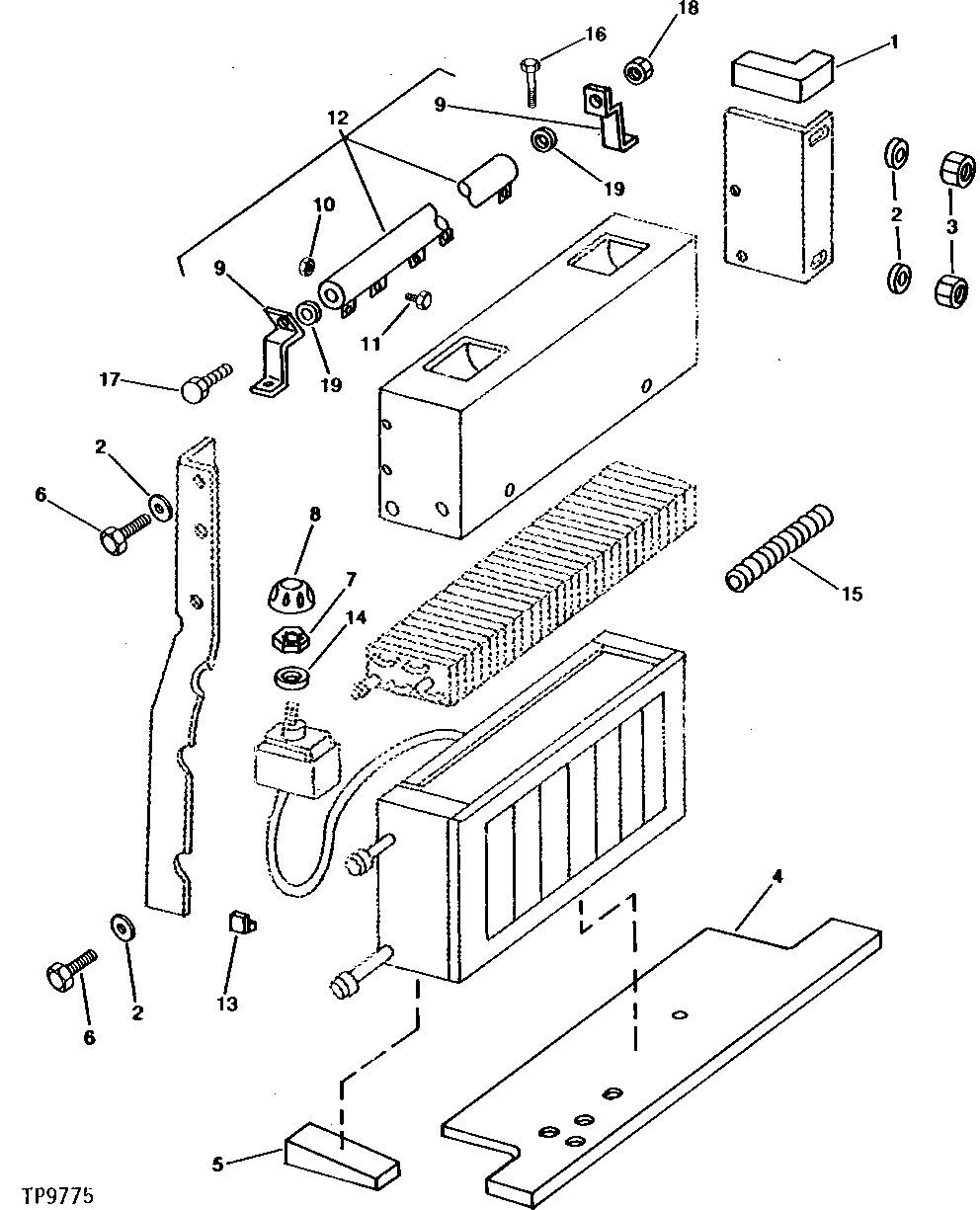

Запчасти John Deere 90 8 - HEATER AND AIR CONDITIONING RESISTOR AND ISOLATORS 1830 - OPERATORS STATION 18

1

T58365

ISOLATOR

1шт.

2

24H1305

WASHER

13/32" X 13/16" X 0.065"

4шт.

3

14H812

NUT

3/8"

2шт.

4

T58361

ISOLATOR

1шт.

5

T58364

ISOLATOR

1шт.

6

19H1648

CAP SCREW

3/8" X 3/4"

2шт.

7

R44165

LOCK NUT

1шт.

8

AL58295

KNOB

(SUB FOR AR69370) (SUB FOR AR49969, THIS APPLICATION)

1шт.

9

BRACKET

(SUB AT56695)

1шт.

10

14H605

NUT

0.164"

4шт.

11

21H1299

SCREW

0.164" X 3/8"

4шт.

12

AT56695

RESISTOR

1шт.

13

T66453

CLAMP

(SUB FOR T59951, THIS APPLICATION)

1шт.

14

24H1340

WASHER

33/64" X 7/8" X 0.075"

1шт.

15

T41592

GUARD

1шт.

16

37H112

SCREW

0.190" X 1/2"

2шт.

17

BOLT

(SUB AT56695)

1шт.

18

NUT

(SUB AT56695)

1шт.

19

WASHER

(SUB AT56695)

2шт.
