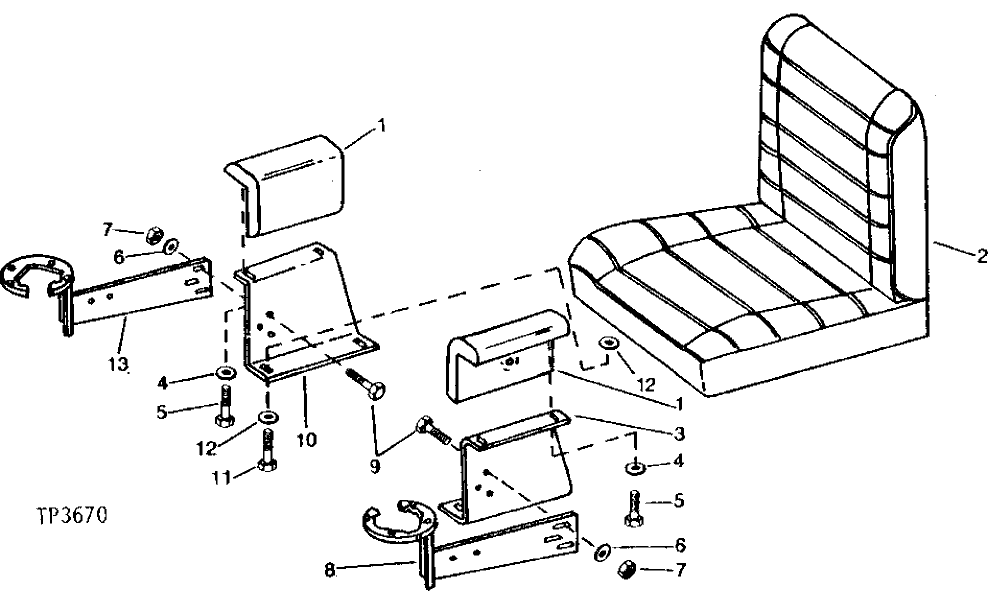

Запчасти John Deere 90 2 - SEAT 1821 - OPERATORS STATION 18

1

AT47440

ARMREST

2шт.

2

AT63325

SEAT

1шт.

3

T71877

SUPPORT

LEFT ARMREST

1шт.

4

24H1305

WASHER

13/32" X 13/16" X 0.065"

4шт.

5

19H2021

CAP SCREW

3/8" X 5/8"

4шт.

6

24H1821

WASHER

6шт.

7

M63707

LOCK NUT

(SUB FOR (6) P43893)

6шт.

8

AT68917

SUPPORT

1шт.

9

19H1948

CAP SCREW

1/4" X 3/4"

6шт.

10

T71878

SUPPORT

1шт.

11

19H1849

CAP SCREW

5/16" X 1-1/4"

4шт.

12

24H1292

WASHER

8шт.

13

AT69365

SUPPORT

1шт.
