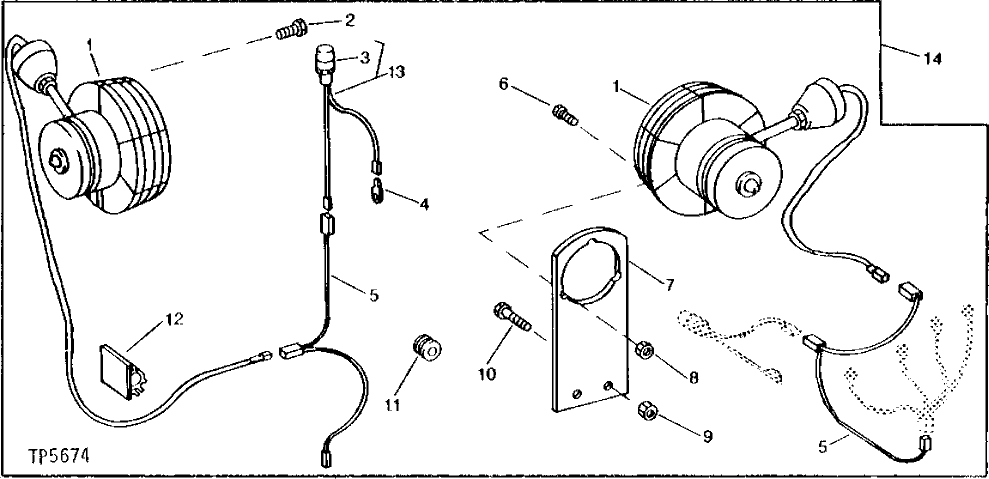

Запчасти John Deere 90 12 - CAB CIRCULATING FAN INSTALLATION 1810 - OPERATORS STATION 18

1

AT41568

FAN

2шт.

2

37H105

SCREW

NO. 10 X 3/8"

3шт.

3

AT170066

KNOB

(SUB FOR AT16799)

1шт.

4

T57655

ELEC. CONNECTOR TERMINAL

1шт.

5

AT62488

WIRING HARNESS

1шт.

6

21H1301

SCREW

0.190" X 1/2"

3шт.

7

T65978

BRACKET

1шт.

8

14H778

NUT

0.190"

3шт.

9

14H732

NUT

3/8"

2шт.

10

19H2676

CAP SCREW

3/8" X 1"

2шт.

11

R28193

GROMMET

(SUB FOR M42869)

1шт.

12

T59951

CLIP

3шт.

13

AT164924

FUSE HOLDER

(SUB FOR AT14193) (ALSO ORDER T82427)

1шт.

T82427

WASHER

(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)

1шт.

14

AT62492

FAN

(NO LONGER AVAILABLE)

1шт.
