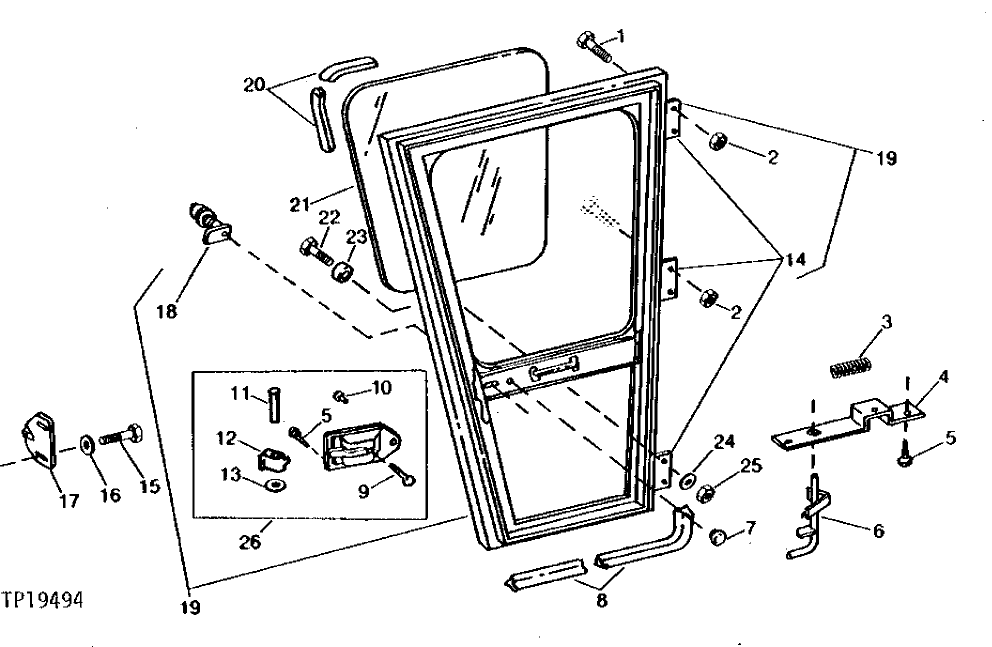

Запчасти John Deere 90 7 - CAB DOOR 1810 - OPERATORS STATION 18

1

N14822

SELF-LOCKING SCREW

(SUB FOR U43007)

6шт.

2

N10215

LOCK NUT

6шт.

3

P31827

SPRING

1шт.

4

U45383

PLATE

1шт.

5

37H196

SCREW

(K)

8шт.

37H196

SCREW

1шт.

6

AU43333

HOLDER

1шт.

7

T32984

PLUG

1шт.

8

WEATHERSTRIP

(4) 623 MM (182") REQUIRED (MAKE FROM U43011 BULK MATERIAL, CUT TO LENGTH)

1шт.

9

T32590

HANDLE

(K)

1шт.

10

AT44188

RIVET

(K)

4шт.

11

PIN FASTENER

(K) ( T81413 NO LONGER AVAILABLE)

1шт.

12

HANDLE

(K) ( T81412 NO LONGER AVAILABLE)

1шт.

13

NUT

(K) ( T81414 NO LONGER AVAILABLE)

1шт.

14

U43102

HINGE

3шт.

15

19H1948

CAP SCREW

1/4" X 3/4"

2шт.

16

24H1286

WASHER

9/32" X 1/2" X 1/16"

2шт.

17

T62374

STRIKER

1шт.

18

AT53801

LOCK

1шт.

19

AT39432

DOOR

(WITH LABELS)

1шт.

20

ISOLATOR

(3) 035 MM (119.5") REQUIRED (MAKE FROM T71383 BULK MATERIAL, CUT TO LENGTH)

1шт.

21

U45376

WINDOWPANE

1шт.

22

19H2924

SCREW

1/4" X 3/4"

1шт.

23

T101090

BUMPER

1шт.

24

24H1288

WASHER

9/32" X 1" X 1/16"

1шт.

25

14H850

NUT

1/4"

1шт.

26

LOCK

(SUB AT39055)

1шт.
