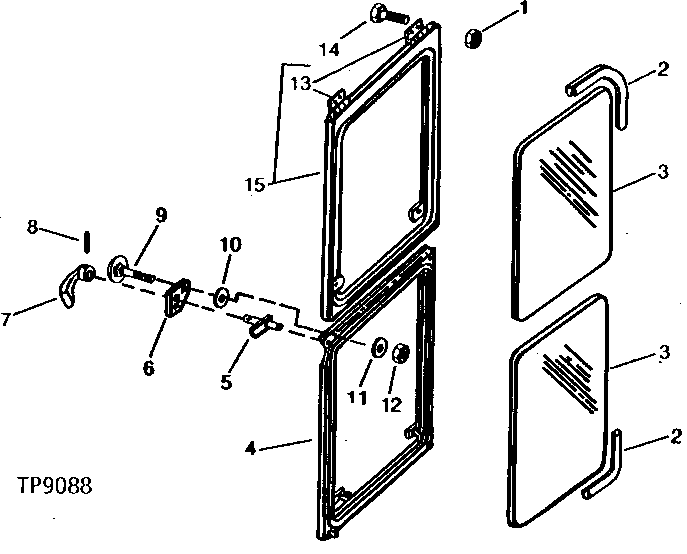

Запчасти John Deere 90 5 - CAB WINDSHIELD 1810 - OPERATORS STATION 18

1

N10215

LOCK NUT

4шт.

2

MOLDING

2 794 MM (110") REQUIRED, (MAKE FROM T71383)

2шт.

3

T62372

WINDOWPANE

2шт.

4

AT59709

FRAME

1шт.

5

AU43701

LOCK

2шт.

6

T62370

PLATE

2шт.

7

M61002

HANDLE

2шт.

8

25H722

GROOVE PIN

1/8" X 1-1/4"

2шт.

9

03H1500

BOLT

3/8" X 1"

4шт.

10

24H1781

WASHER

13/32" X 7/8" X 1/4"

4шт.

11

12H304

LOCK WASHER

3/8"

4шт.

12

14H812

NUT

3/8"

4шт.

13

U43102

HINGE

2шт.

14

N14822

SELF-LOCKING SCREW

(SUB FOR U43007)

4шт.

15

AT59714

FRAME

1шт.
