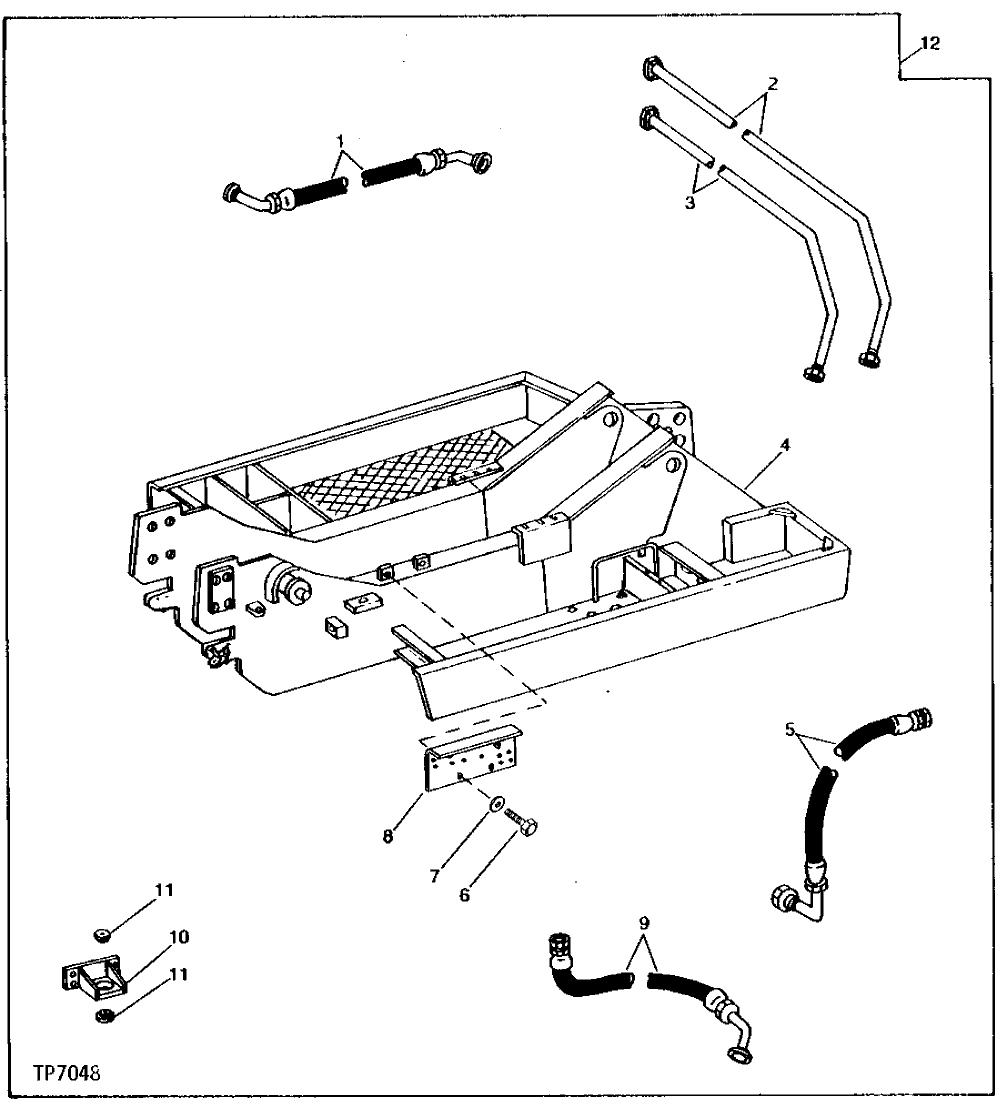

Запчасти John Deere 90 2 - REPLACEMENT MAIN FRAME 1740 - FRAME, CHASSIS OR SUPPORTING STRUCTURE 17

1

AT72515

HYDRAULIC HOSE - FABRICATE

1" X 1 027 MM (40-1/2") X 1"

1шт.

2

AT72514

TUBE

1шт.

3

AT72513

TUBE

(USE IF AVAILABLE)

1шт.

4

MAIN FRAME

WITH SKIRTS ( AT72508 NO LONGER AVAILABLE)

1шт.

5

AT72517

HYDRAULIC HOSE - FABRICATE

1-5/8" X 880 MM (34-3/4") X 1-5/8"

1шт.

6

19H2994

CAP SCREW

HS, SAE 8, 5/8" X 1-1/2"

2шт.

7

24H1106

WASHER

11/16" X 1-3/4" X .134"

2шт.

8

T78163

PLATE

(SUB FOR AT72507)

1шт.

9

AT72516

HYDRAULIC HOSE - FABRICATE

1шт.

10

AT72512

SUPPORT

2шт.

11

AT72914

RUBBER MOUNT

(SUB FOR AT72519)

4шт.

12

FRAME

( AT72518 NO LONGER AVAILABLE)

1шт.
