4 - ENGINE STOP WARNING RELAY AND ENGINE TEMPERATURE HARNESS

Запчасти John Deere 90 4 - ENGINE STOP WARNING RELAY AND ENGINE TEMPERATURE HARNESS 1674 - ELECTRICAL SYSTEMS 16

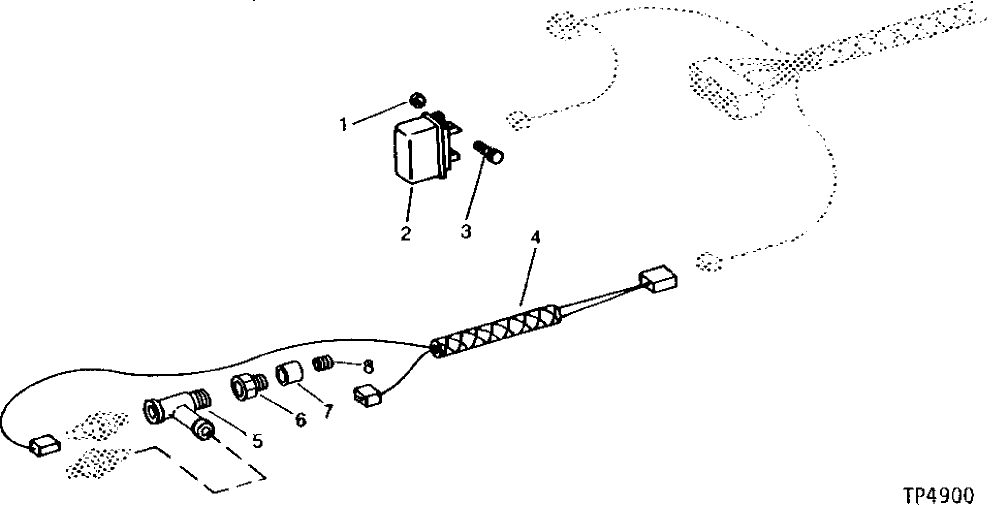

Схема запчастей John Deere 90 - 4 - ENGINE STOP WARNING RELAY AND ENGINE TEMPERATURE HARNESS 1674 - ELECTRICAL SYSTEMS 16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14H786

NUT

1/4"

2шт.

2

AT197909

RELAY

(SUB FOR AT68083) (ALSO ORDER T190672)

1шт.

3

19H1227

CAP SCREW

1/4" X 1/2"

2шт.

4

AT69231

WIRING HARNESS

1шт.

5

R70752

TEE FITTING

1шт.

6

15H514

PIPE BUSHING

1/2" X 1/8"

1шт.

7

15H600

COUPLING

1/2"

1шт.

8

29H199

THREADED NIPPLE

1/2" X 1-3/4"

1шт.
