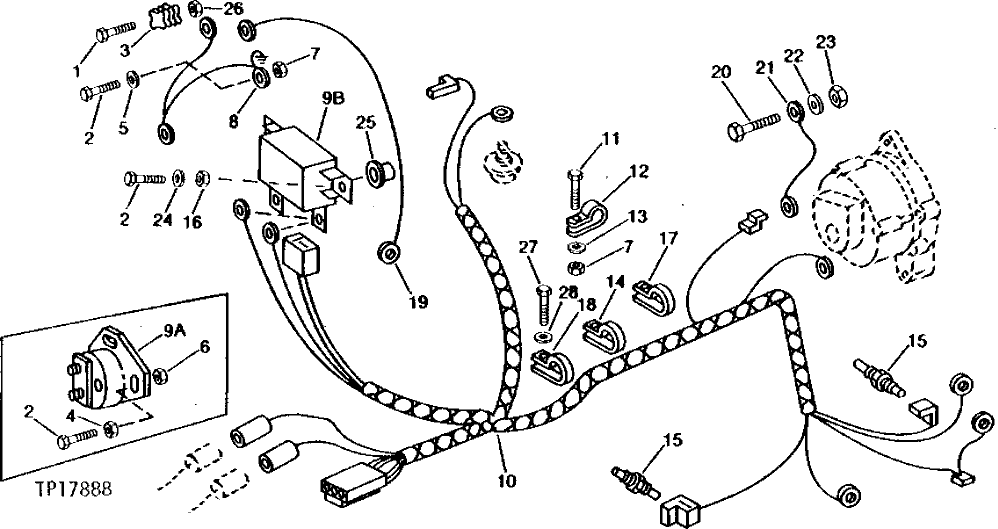

Запчасти John Deere 90 2 - ENGINE WIRING HARNESS 1674 - ELECTRICAL SYSTEMS 16

1

21H1312

SCREW

0.190" X 1"

2шт.

2

19H1914

CAP SCREW

1/4" X 1"

2шт.

3

AR41287

CIRCUIT BREAKER

1шт.

4

14H631

NUT

0.190"

2шт.

5

24H1243

WASHER

11/32" X 5/8" X 1/16"

2шт.

6

14H786

NUT

1/4"

2шт.

7

14H812

NUT

3/8"

1шт.

8

AU42892

WIRING LEAD

1шт.

9A

AT71088

RELAY

(SUB AT145341, (2) T82793, (2) 19H1914, (2) 24H1287 AND AT107364) (STARTER)

1шт.

9B

AT145341

RELAY

(SUB FOR AT85258) (STARTER)

1шт.

9C

14M7165

LOCK NUT

M6, (STARTER RELAY TERMINALS) (NOT ILLUSTRATED)

2шт.

10

AT73160

WIRING HARNESS

(SUB AT107343)

1шт.

AT107343

WIRING HARNESS

1шт.

11

19H2676

CAP SCREW

3/8" X 1"

1шт.

12

AH87142

CLIP

(SUB FOR T13814, THIS APPLICATION)

1шт.

13

24H1305

WASHER

13/32" X 13/16" X 0.065"

2шт.

14

R46415

CLAMP

(SUB FOR H75541)

4шт.

15

AT85174

SWITCH

(SUB FOR AR27977)

2шт.

16

14H785

NUT

5/16"

2шт.

17

AH79175

CLIP

1шт.

18

T75276

CLAMP

1шт.

T75276

CLAMP

(RIGHT SIDE OF BLOCK AROUND STARTER WIRES)

2шт.

19

AT105802

WIRING LEAD

1шт.

20

19H1948

CAP SCREW

1/4" X 3/4"

1шт.

21

AT107150

WIRING LEAD

1шт.

22

24H1286

WASHER

9/32" X 1/2" X 1/16"

1шт.

23

14H786

NUT

1/4"

1шт.

24

24H1287

WASHER

9/32" X 5/8" X 0.065"

2шт.

25

T82793

NUT

2шт.

26

14H631

NUT

0.190"

2шт.

27

19M7932

CAP SCREW

M8 X 16, (CLAMP TO RIGHT SIDE OF ENGINE BLOCK)

1шт.

28

24H1136

WASHER

11/32" X 11/16" X 0.065", (CLAMP SCREW-RIGHT SIDE OF ENGINE BLOCK)

1шт.
