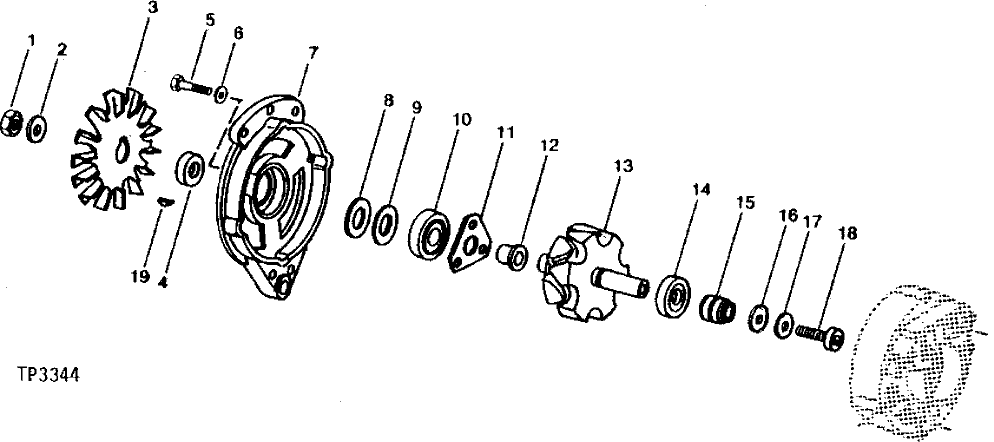

Запчасти John Deere 90 3 - ALTERNATOR (FRONT SECTION) 1672 - ELECTRICAL SYSTEMS 16

1

14H866

NUT

5/8"

1шт.

2

12H294

LOCK WASHER

5/8"

1шт.

3

AR50231

FAN

1шт.

4

R47463

SPACER

1шт.

5

21H1299

SCREW

0.164" X 3/8"

3шт.

6

12H315

LOCK WASHER

0.164"

3шт.

7

HOUSING

FRONT ( T37812 USE IF AVAILABLE)

1шт.

8

T46861

WASHER

1шт.

9

SHIM

( T51143 USE IF AVAILABLE)

1шт.

10

AR50228

BALL BEARING

FRONT

1шт.

11

RETAINER

FRONT BEARING ( T25346 USE IF AVAILABLE)

1шт.

12

R47462

SLEEVE

1шт.

13

ROTOR

( AT49447 USE IF AVAILABLE)

1шт.

14

JD9449

BALL BEARING

REAR

1шт.

15

RING

( AT27127 USE IF AVAILABLE)

1шт.

16

WASHER

( T51232 USE IF AVAILABLE)

1шт.

17

12H246

LOCK WASHER

0.190"

1шт.

18

T17948

SCREW

(SUB FOR T29102)

1шт.

19

26H9

SHAFT KEY

1/8" X 5/8"

1шт.
