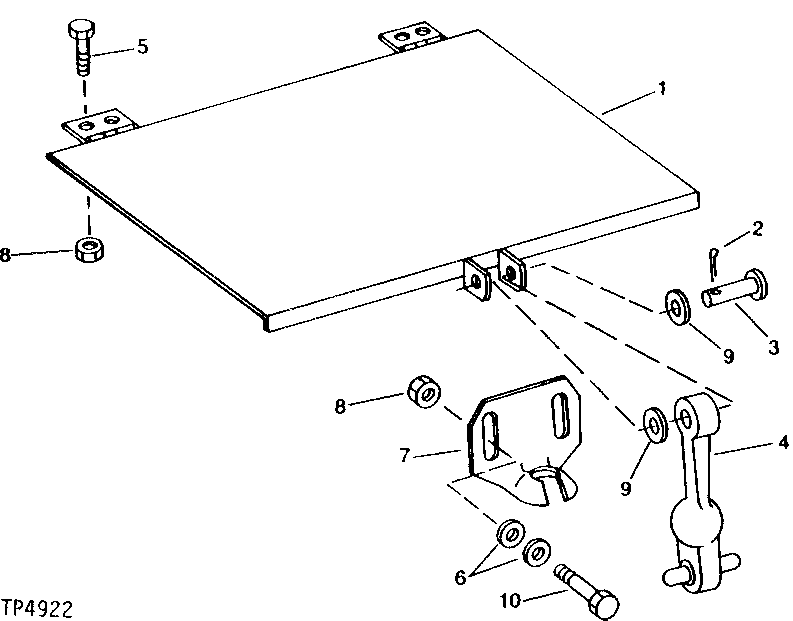

Запчасти John Deere 90 4 - BATTERY COVER AND ANCHOR 1671 - ELECTRICAL SYSTEMS 16

1

AT47204

COVER

1шт.

2

11M7079

COTTER PIN

2.500 X 12 MM

1шт.

3

B12584

PIN FASTENER

(SUB FOR T48111, THIS APPLICATION)

1шт.

4

T48110

LOCK

1шт.

5

03H1765

BOLT

3/8" X 3/4"

4шт.

6

24H1309

WASHER

13/32" X 1-1/16" X 0.120"

4шт.

7

ANCHOR

(T48114 NO LONGER AVAILABLE)

1шт.

8

14H812

NUT

3/8"

6шт.

9

24H1287

WASHER

9/32" X 5/8" X 0.065"

2шт.

10

19H1648

CAP SCREW

3/8" X 3/4"

2шт.
