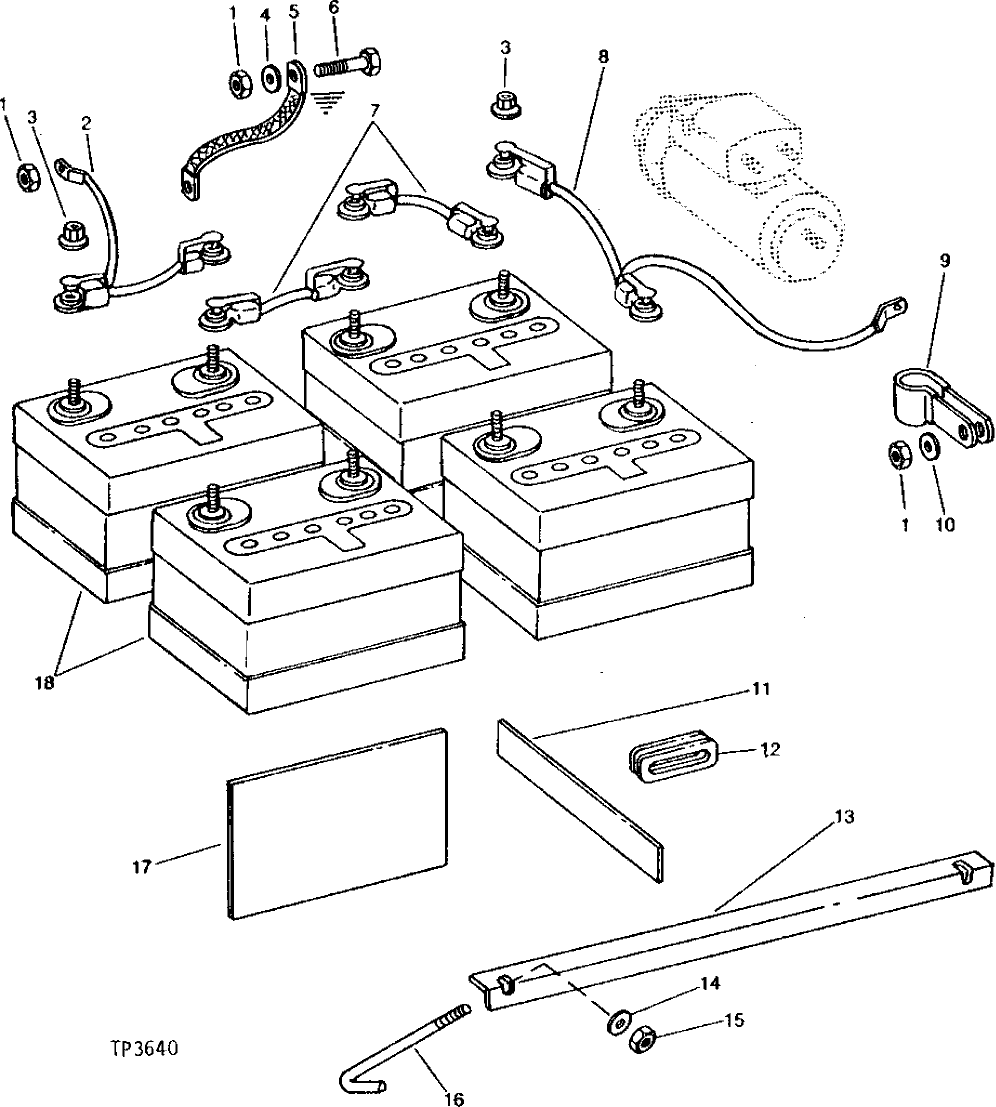

Запчасти John Deere 90 2 - BATTERIES AND BATTERY CABLES 1671 - ELECTRICAL SYSTEMS 16

1

14H812

NUT

3/8"

4шт.

2

AT69145

CABLE

1шт.

3

T57553

NUT

8шт.

4

12H331

LOCK WASHER

3/8"

2шт.

GREASE

(NOT AVAILABLE FOR SERVICE)

1шт.

24H1305

WASHER

2шт.

5

AT46396

GROUND CABLE

1шт.

6

19H3239

CAP SCREW

3/8" X 1-1/4"

1шт.

19H2676

CAP SCREW

1шт.

7

AT58974

BATTERY CABLE

2шт.

8

AT69144

BATTERY CABLE

1шт.

9

T38377

CLAMP

(SUB FOR T24958, THIS APPLICATION)

1шт.

10

12H304

LOCK WASHER

3/8"

1шт.

11

T72105

ISOLATOR

2шт.

12

U41729

GROMMET

1шт.

13

T72107

ANGLE

2шт.

14

24H1136

WASHER

11/32" X 11/16" X 0.065"

4шт.

15

14H786

NUT

1/4"

4шт.

16

T43089

BOLT

4шт.

17

T72106

WEATHERSTRIP

2шт.

18

AT77811

WET CHARGED BATTERY

(SUB FOR AT58859, THIS APPLICATION)

4шт.
