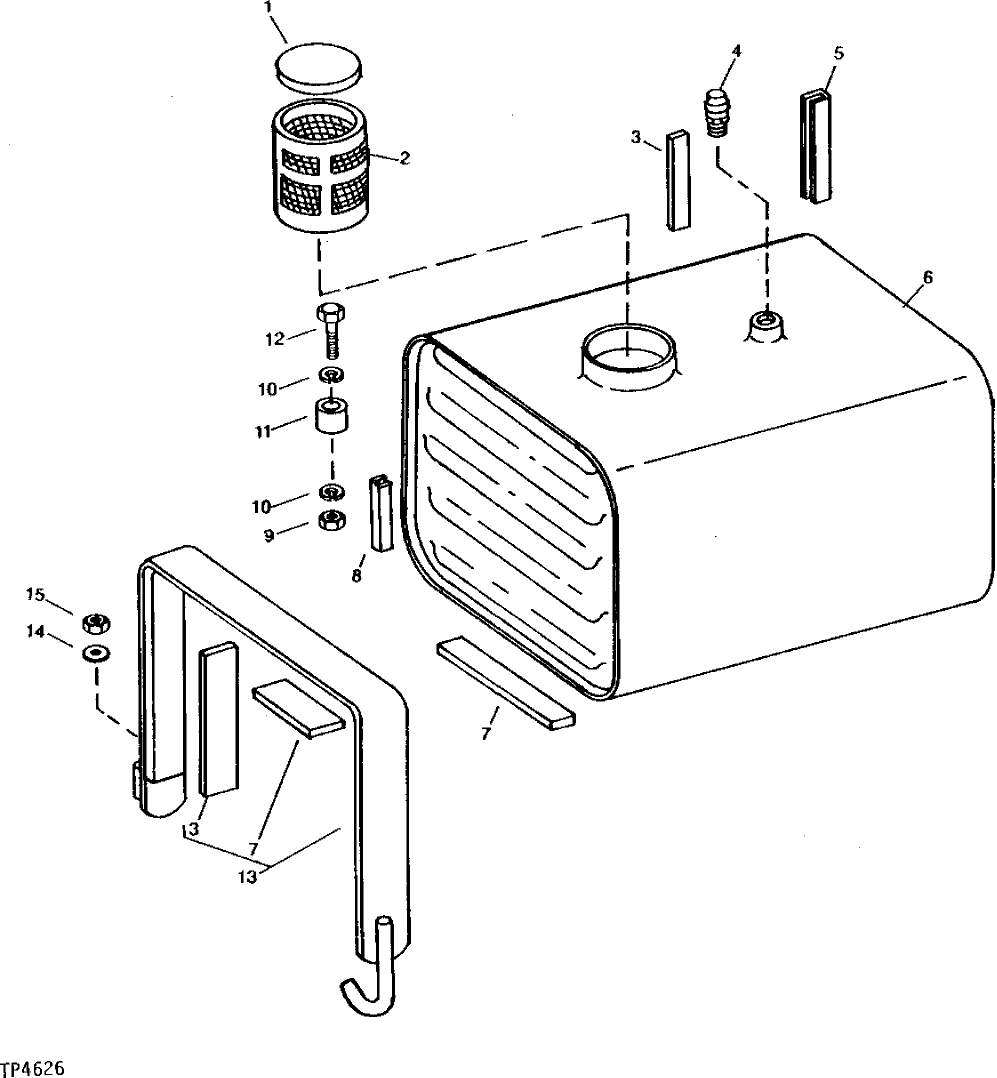

Запчасти John Deere 90 2 - FUEL TANK 560 - ENGINE AUXILIARY SYSTEMS 5

1

AR36752

CAP

1шт.

2

AT74492

STRAINER

(SUB FOR AT27449, THIS APPLICATION)

1шт.

3

T46077

ISOLATOR

1шт.

4

E14814

PRESSURE RELIEF FITTING

(SUB FOR AT70481)

1шт.

5

MOLDING

240 MM (9.6") LONG (MAKE FROM T58056)

1шт.

6

AT69035

FUEL TANK

1шт.

AT85388

FUEL TANK

(SUB FOR AT80865)

1шт.

7

T41919

ISOLATOR

8шт.

8

MOLDING

395 MM (15.6") LONG (MAKE FROM T58056)

1шт.

9

14H812

NUT

3/8"

3шт.

10

24M7096

WASHER

0.413" X 0.709" X 0.063"

6шт.

11

B1828R

BUSHING

(SUB FOR H80271, THIS APPLICATION)

3шт.

12

19H3217

CAP SCREW

3/8" X 1-3/4"

3шт.

13

AT55144

BAND

2шт.

14

24H1211

WASHER

9/16" X 1-3/8" X 0.105"

2шт.

15

H32811

LOCK NUT

2шт.
