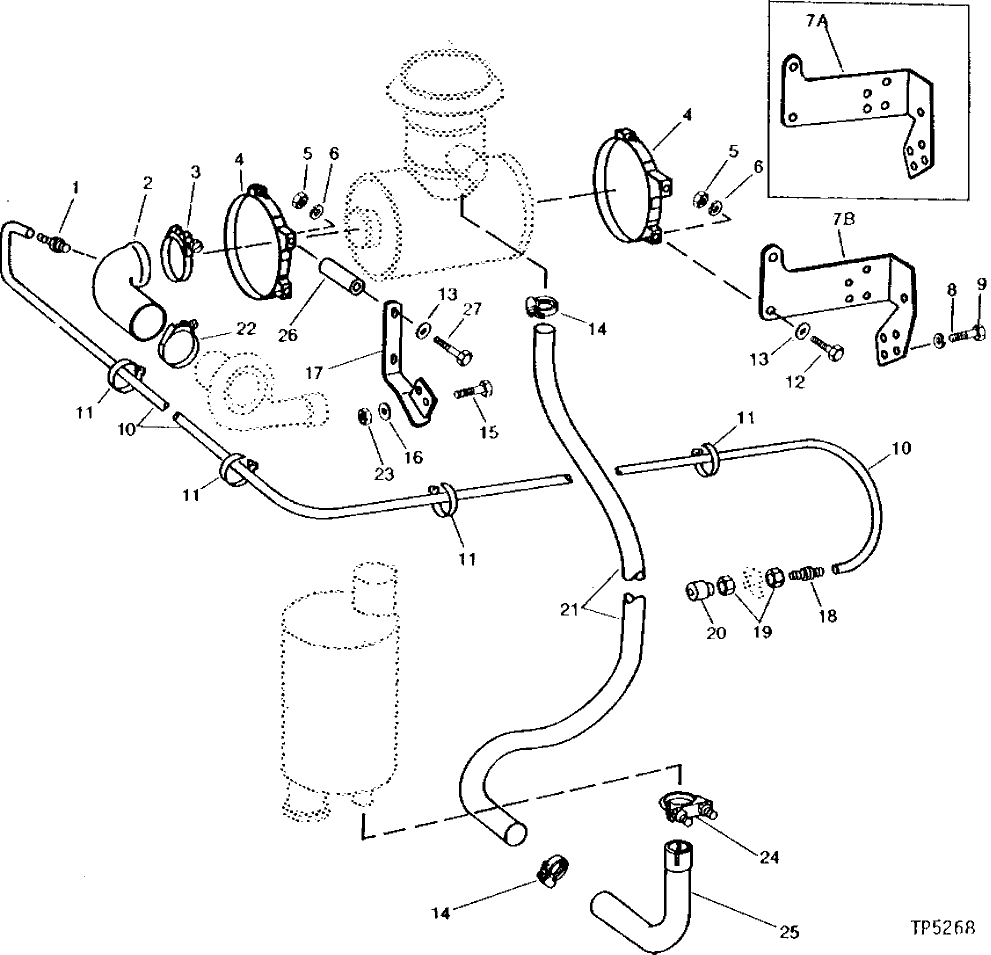

Запчасти John Deere 90 2 - AIR CLEANER HOSES AND SUPPORTS 520 - ENGINE AUXILIARY SYSTEMS 5

1

AT18687

HOSE FITTING

1шт.

2

AT69309

HOSE

1шт.

3

TT208828

CLAMP

(SUB FOR AT53440)

1шт.

4

AR29254

BAND

2шт.

5

14H812

NUT

3/8"

4шт.

6

12H304

LOCK WASHER

3/8"

4шт.

7A

T72200

SUPPORT

(SUB T73764, (2) A23071 AND (2) 19H2855)

1шт.

7B

T73764

SUPPORT

1шт.

8

12M7066

LOCK WASHER

10 MM

4шт.

9

19M7662

CAP SCREW

M10 X 30

4шт.

19M7550

CAP SCREW

M10 X 35

4шт.

10

HOSE

2 286 MM LONG (90") (MAKE FROM M43951)

1шт.

11

R44302

TIE BAND

4шт.

12

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

13

24H1304

WASHER

13/32" X 23/32" X 0.120"

4шт.

14

TY22472

CLAMP

(SUB FOR AT145651 OR AR21999 OR AR21840)

2шт.

15

19M7073

CAP SCREW

M12 X 50

2шт.

16

12M7058

LOCK WASHER

(SUB FOR 12M7067) 12 MM

2шт.

17

AT70687

BRACKET

1шт.

18

T75826

ADAPTER FITTING

(SUB FOR T21329, THIS APPLICATION)

1шт.

19

14H934

NUT

7/16", (SUB FOR R44165, THIS APPLICATION)

2шт.

20

AT25983

AIR RESTRICTION INDICATOR

1шт.

21

T72202

HOSE

1 067 MM LONG (42") (SUB AN152143, T73809 AND T74309)

1шт.

T74309

HOSE

737 MM LONG (29")

1шт.

22

AT39390

HOSE CLAMP

(SUB FOR AT53439)

1шт.

23

14M7275

NUT

M12

2шт.

24

AN152143

CLAMP

1шт.

25

T73809

TUBE

1шт.

26

A23071

BUSHING

(SUB FOR T46742, THIS APPLICATION)

2шт.

27

19H3239

CAP SCREW

3/8" X 1-1/4", (SUB FOR 19H988, THIS APPLICATION)

2шт.

19H2023

CAP SCREW

3/8" X 3-1/4"

2шт.
