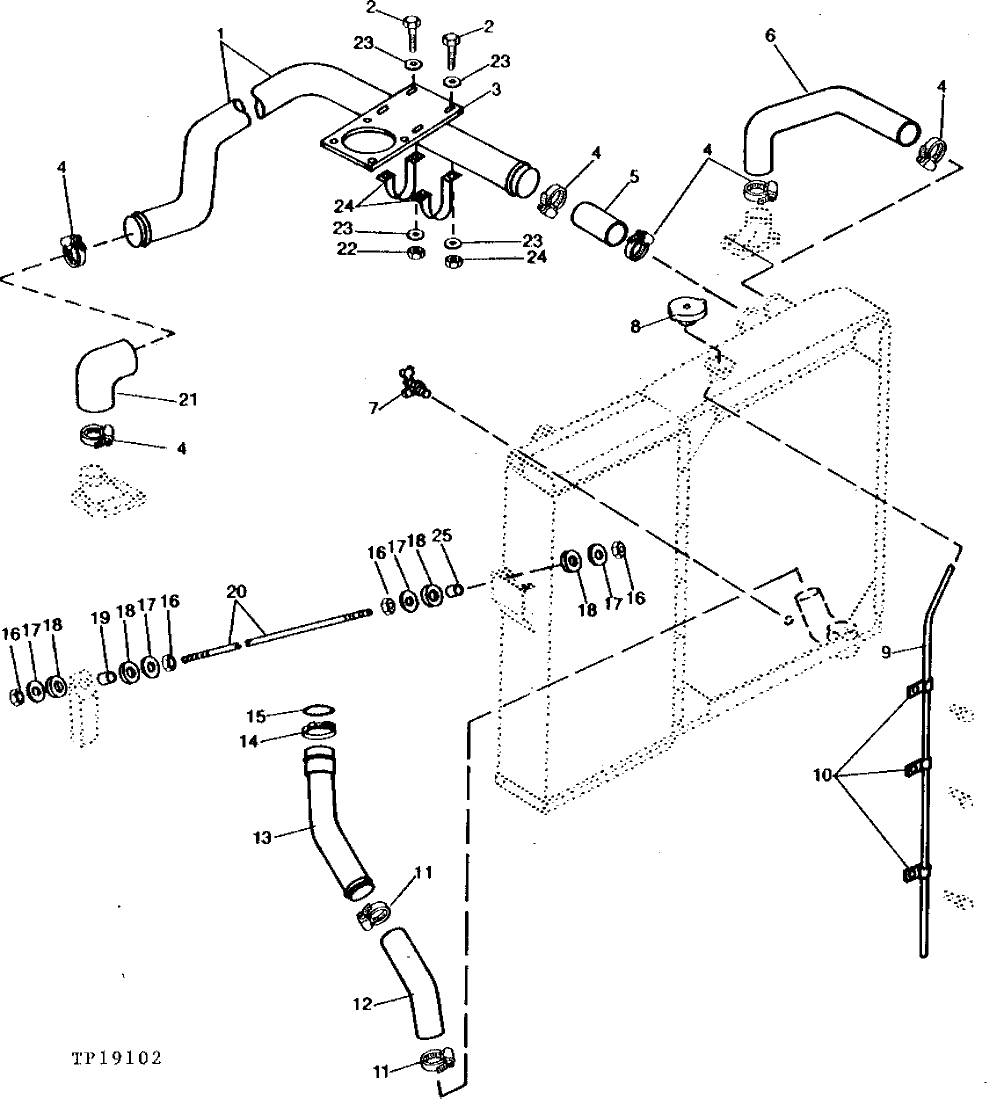

Запчасти John Deere 90 4 - RADIATOR HOSES 510 - ENGINE AUXILIARY SYSTEMS 5

1

T73265

TUBE

1шт.

2

19H2676

CAP SCREW

3/8" X 1"

4шт.

3

T73268

PLATE

1шт.

4

TY22473

CLAMP

(SUB FOR AR62936)

6шт.

5

T73266

HOSE

1шт.

6

T72140

HOSE

1шт.

7

AT13740

DRAIN VALVE

1шт.

8

AN110020

CAP

1шт.

9

T59085

HOSE

1шт.

HOSE

(CUT TO 55.12") (MAKE FROM TY22324) (SUB FOR T75679)

1шт.

10

T19935

CLAMP

(SUB FOR N10010)

3шт.

11

AR21841

CLAMP

2шт.

12

AT69236

HOSE

1шт.

13

AT69237

ELBOW FITTING

1шт.

14

AT57780

CLAMP

1шт.

15

T38558

O-RING

1шт.

16

14H1040

NUT

1/2"

8шт.

17

24H1204

WASHER

9/16" X 1-15/32" X 0.075"

8шт.

18

U45315

WASHER

8шт.

19

T47250

SPACER

(SUB FOR M43318, THIS APPLICATION)

4шт.

T47250

SPACER

2шт.

20

T57821

STUD

2шт.

21

T73267

HOSE

1шт.

22

14H812

NUT

3/8"

4шт.

23

24H1305

WASHER

13/32" X 13/16" X 0.065"

4шт.

24

T31761

CLAMP

2шт.

25

B33873

BUSHING

(SUB FOR N7168DN)

2шт.
