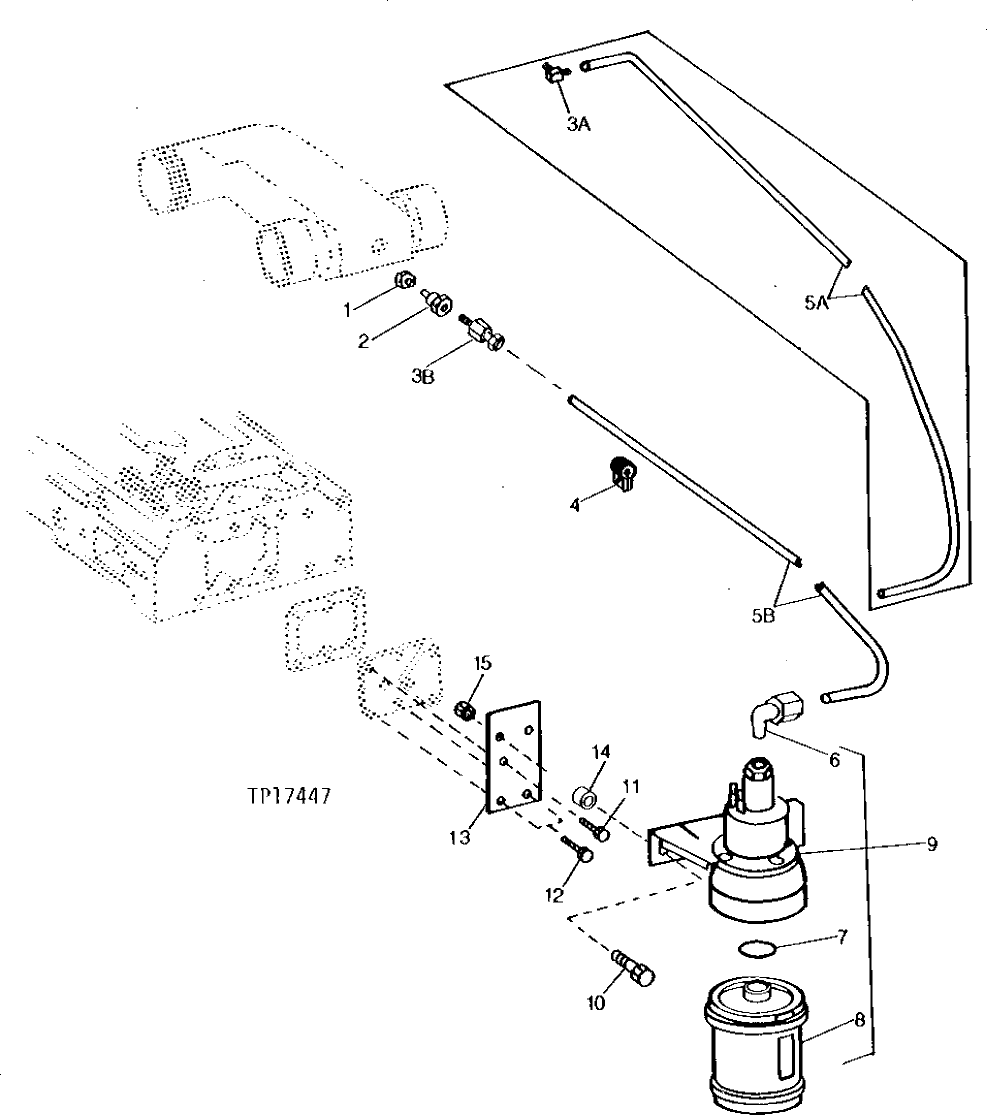

Запчасти John Deere 90 2 - COLD WEATHER STARTING AID 505 - ENGINE AUXILIARY SYSTEMS 5

1

T155858

NOZZLE

(SUB FOR R28583)

1шт.

2

R63675

NOZZLE HOLDER

1шт.

3A

RE21790

ELBOW FITTING

(SUB FOR AT25266)

1шт.

3B

AT25264

FITTING

1шт.

4

T14264

CLAMP

1шт.

5A

TUBE

(MAKE FROM T78593 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T34589, THIS APPLICATION)

1шт.

5B

TUBE

(MAKE FROM T78593 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T34589, THIS APPLICATION)

1шт.

6

RE21790

ELBOW FITTING

(SUB FOR AT25266)

1шт.

7

T13119

O-RING

1шт.

8

R73498

CONTAINER

1шт.

9

AT125919

PANEL

(SUB FOR AT105778)

1шт.

10

19M7323

CAP SCREW

M8 X 40

2шт.

11

19M7550

CAP SCREW

M10 X 35

1шт.

12

19M8081

CAP SCREW

M10 X 80, (SUB FOR 19M7479)

2шт.

13

T72006

PLATE

1шт.

14

28H1523

BUSHING

0.493" X 0.675" X 13/16"

2шт.

15

14M7151

NUT

M8

2шт.
