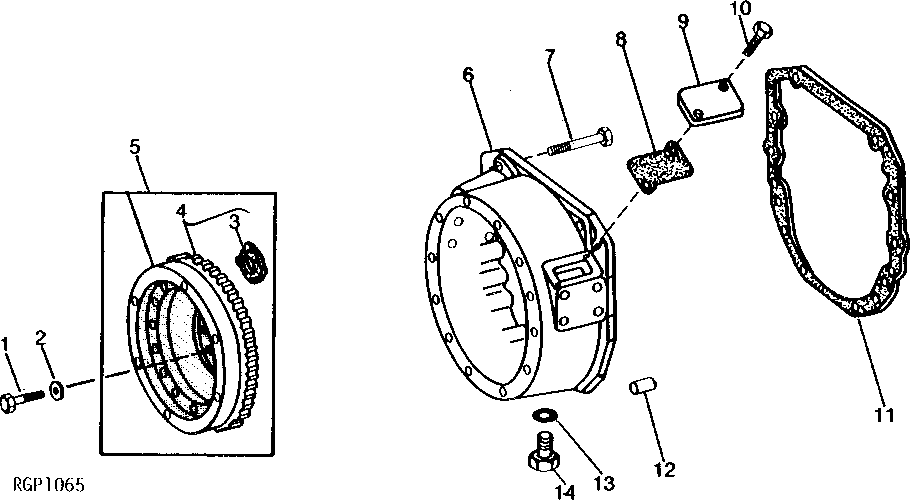

Запчасти John Deere 90 2 - FLYWHEEL AND HOUSING 433 - ENGINE 4

1

R35044

SELF-LOCKING SCREW

6шт.

2

R76126

WASHER

6шт.

3

R57480

GASKET

1шт.

4

AR103044

KIT

(MARKED R76000)

1шт.

5

AR103320

KIT

(MARKED R63032)

1шт.

6

R121688

HOUSING

1шт.

7

19H1862

CAP SCREW

3/4" X 2-1/2"

6шт.

8

R67989

GASKET

1шт.

9

R31493

COVER

1шт.

10

21H1318

SCREW

0.216" X 1/2"

2шт.

11

R100336

GASKET

1шт.

12

H79910

DOWEL PIN

(USE WITH R121688)

2шт.

13

O-RING

NAшт.

14

FITTING PLUG

NAшт.

19H2431

CAP SCREW

(OIL PAN TO FLYWHEEL HSG) (SUB FOR 19H1782)

6шт.

R78019

WASHER

(OIL PAN TO FLYWHEEL HSG)

6шт.

RE57792

CLIP

(TIMING PIN PLUG)

1шт.
