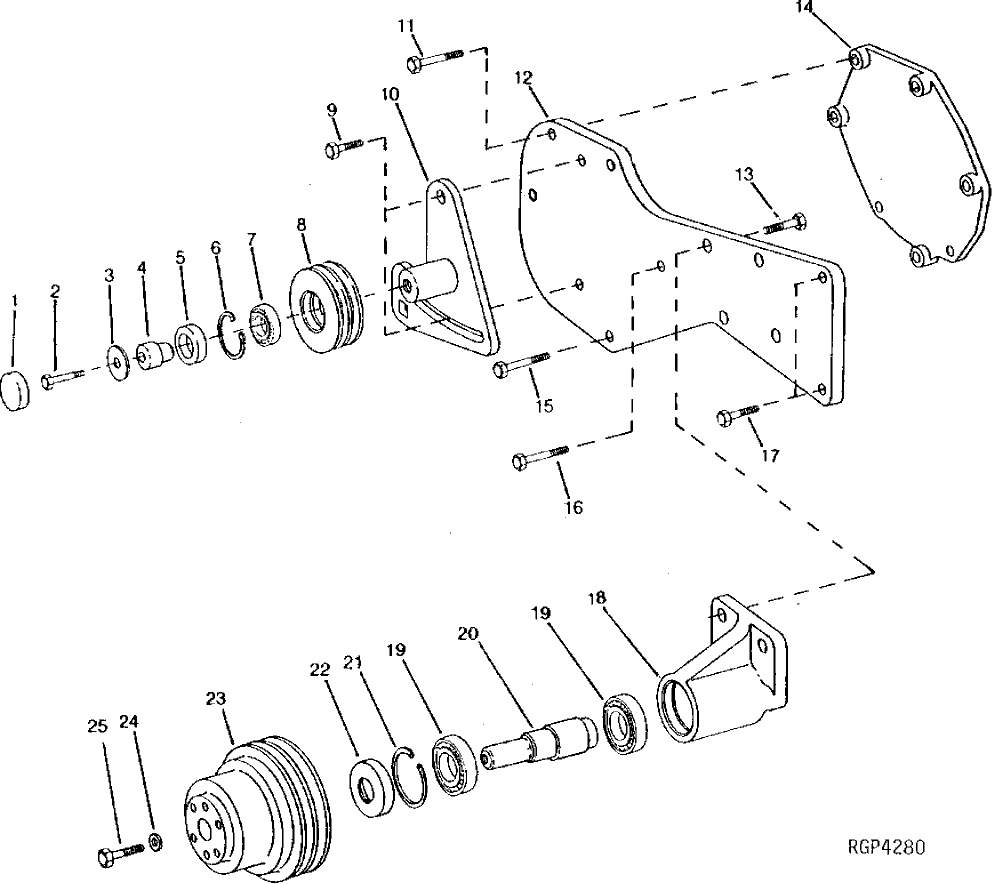

Запчасти John Deere 90 6 - FAN DRIVE PULLEY, SUPPORT AND IDLER PULLEY 429 - ENGINE 4

1

R66077

PLUG

1шт.

2

19H2678

CAP SCREW

7/16" X 2-1/8"

1шт.

3

24H1330

WASHER

15/32" X 1-3/8" X 7/64"

1шт.

4

R70377

HUB

1шт.

5

AR92593

SEAL

1шт.

6

R55408

WEAR RING

1шт.

7

JD8670

BALL BEARING

1шт.

8

T105390

IDLER

1шт.

9

19H1792

CAP SCREW

1/2" X 1"

2шт.

10

RE46233

BRACKET

1шт.

11

19H3175

CAP SCREW

3/8" X 3-5/8"

3шт.

12

R108877

PLATE

1шт.

13

19H1815

CAP SCREW

1/2" X 1-1/4"

4шт.

14

R108856

COVER

1шт.

15

19H3217

CAP SCREW

3/8" X 1-3/4"

1шт.

16

19H3483

CAP SCREW

3/8" X 1-1/8"

1шт.

17

19H3175

CAP SCREW

3/8" X 3-5/8"

2шт.

18

RE53176

HOUSING

(NOT AS SHOWN)

1шт.

19

JD10329

BALL BEARING

2шт.

20

R63987

SHAFT

1шт.

21

R62191

SNAP RING

1.7 MM (.067") (RED)

ARшт.

R62192

SNAP RING

1.9 MM (.077") (GREEN)

ARшт.

R62193

SNAP RING

2.2 MM (.087") (BLUE)

ARшт.

R62194

SNAP RING

2.5 MM (.097") (WHITE)

ARшт.

22

RE20768

SEAL

1шт.

23

R108857

PULLEY

1шт.

24

T20217

WASHER

1шт.

25

R79850

CAP SCREW

1шт.

T21242

WASHER

(BELT TIGHTENER BRKT TO BELT TIGHTENER LOWER SCREW)

2шт.

19H2055

CAP SCREW

(IDLER PULLEY HUB TO BELT TIGHTENER BRACKET)

1шт.
