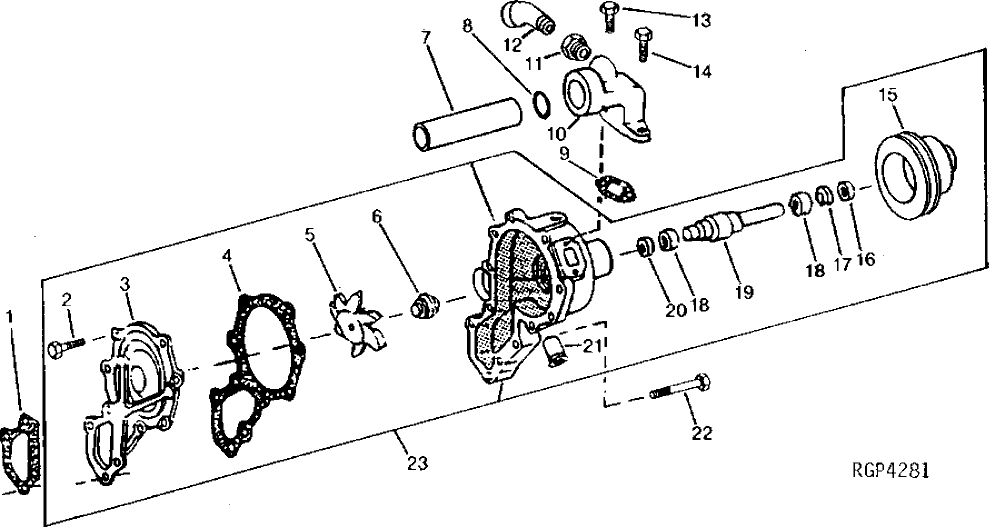

Запчасти John Deere 90 2 - WATER PUMP AND PULLEY 417 - ENGINE 4

1

R520542

GASKET

(SUB FOR R49495)

1шт.

2

19H2127

CAP SCREW

5/16" X 7/8"

6шт.

3

R67351

COVER

1шт.

4

R99785

GASKET

1шт.

5

R84180

IMPELLER

1шт.

6

RE68318

SEAL KIT

1шт.

7

R67358

TUBE

1шт.

8

T19687

O-RING

1шт.

9

R67357

GASKET

1шт.

10

R98247

ELBOW FITTING

1шт.

11

15H619

PIPE BUSHING

3/8"

1шт.

12

15H221

ELBOW FITTING

3/8"

1шт.

13

19H2661

CAP SCREW

5/16" X 1-3/8"

1шт.

14

19H2127

CAP SCREW

5/16" X 7/8"

1шт.

15

R110445

PULLEY

1шт.

16

RE20768

SEAL

1шт.

17

F2367R

SNAP RING

1.57 MM (.062")

ARшт.

R62191

SNAP RING

1.70 MM (.067") (RED)

ARшт.

R62192

SNAP RING

1.96 MM (.077") (GREEN)

ARшт.

R62193

SNAP RING

2.20 MM (.087") (BLUE)

ARшт.

R62194

SNAP RING

2.46 MM (.097") (WHITE)

ARшт.

18

JD10329

BALL BEARING

2шт.

19

R82051

SHAFT

1.57 MM (.062")

1шт.

20

RE20767

SEAL

1шт.

21

R57503

TUBE

1шт.

22

19H3708

CAP SCREW

3/8" X 2-5/8"

2шт.

23

RE60371

WATER PUMP

(MARKED R124060)

1шт.

SE500906

WATER PUMP REMAN

(MARKED R124060 OR R108906) (REMANUFACTURED FOR RE60371)

1шт.

R98527

FILTER

(WEEP HOLE)

1шт.
