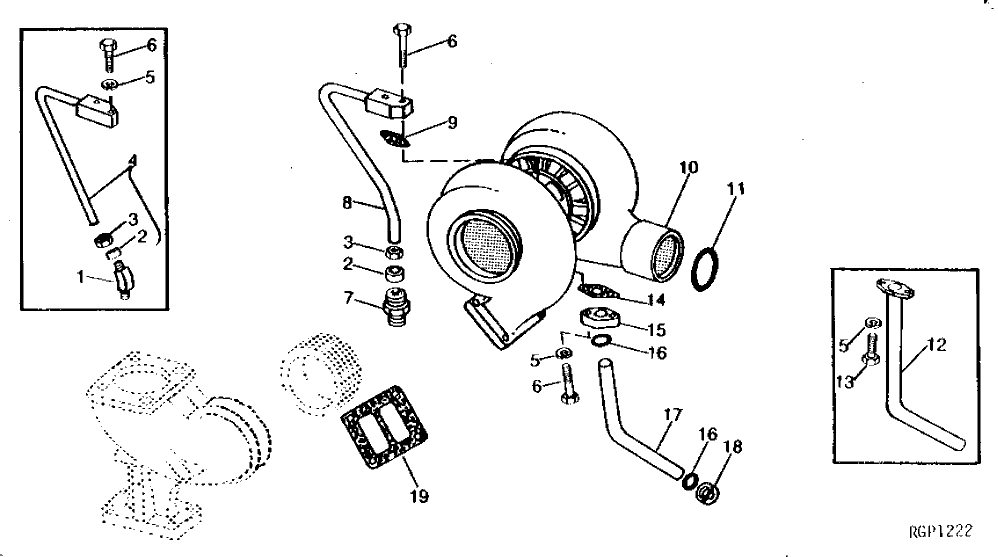

Запчасти John Deere 90 1 - TURBOCHARGER AND OIL LINES 416 - ENGINE 4

1

R63553

ELBOW FITTING

(SUB AR94279, R63551, R63552 AND R71653)

1шт.

2

R63551

SEALING WASHER

1шт.

3

R63552

TUBE NUT

1шт.

4

AR78490

OIL LINE

(SUB AR94279, R63551, R63552 AND R71653)

1шт.

5

12M7066

LOCK WASHER

10 MM

4шт.

12M7066

LOCK WASHER

2шт.

6

19M7358

CAP SCREW

M10 X 40

2шт.

19M7358

CAP SCREW

4шт.

7

R71653

FITTING

1шт.

8

AR94279

OIL LINE

1шт.

9

R58222

GASKET

1шт.

10

TURBOCHARGER

(SUB AR104052) (SUB FOR AR89296)

1шт.

TURBOCHARGER

(SUB AR104052)

1шт.

11

R57517

O-RING

(SUB FOR R61112)

1шт.

12

AR76021

OIL LINE

(SUB R71654, R71655, R61871 AND (2) 19M7358)

1шт.

13

19M7402

CAP SCREW

M10 X 25

2шт.

14

R58221

GASKET

1шт.

15

R71655

ADAPTER FITTING

1шт.

16

R61871

O-RING

1шт.

R61871

O-RING

2шт.

17

R71654

OIL TUBE

1шт.

18

R61870

ADAPTER FITTING

1шт.

19

R49697

GASKET

1шт.
