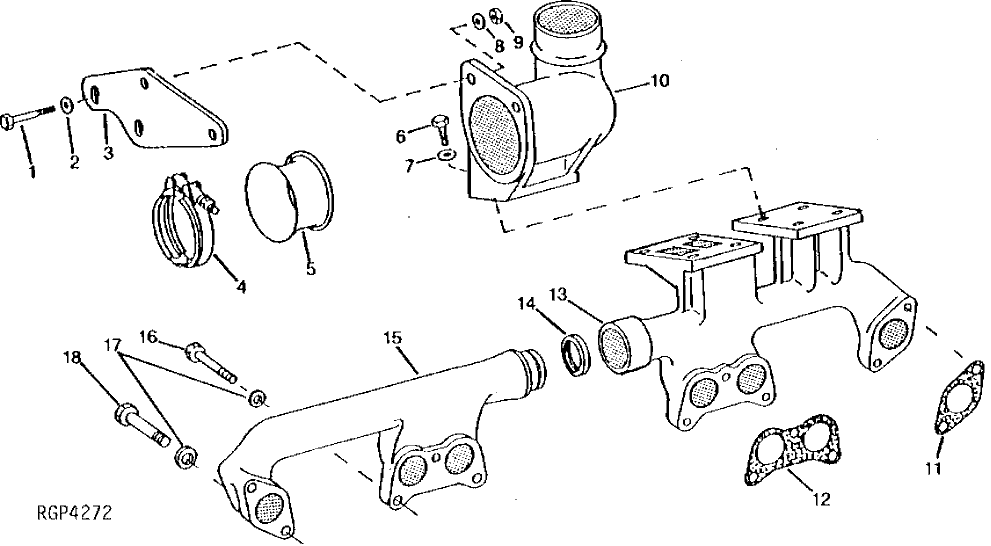

Запчасти John Deere 90 4 - EXHAUST MANIFOLDS AND ELBOW 410 - ENGINE 4

1

19H3483

CAP SCREW

3/8" X 1-1/8"

1шт.

2

LOCK WASHER

NAшт.

3

R100817

SUPPORT

1шт.

4

RE70212

CLAMP

(SUB FOR RE40048)

1шт.

5

R133299

ADAPTER FITTING

1шт.

6

R54500

SCREW

4шт.

7

24H1305

WASHER

13/32" X 13/16" X 0.065"

4шт.

8

24H1682

WASHER

13/32" X 7/8" X 0.120"

1шт.

9

14H1090

NUT

(SUB FOR E55662)

1шт.

10

R100386

PIPE ELBOW

1шт.

11

R80969

GASKET

2шт.

12

R80970

GASKET

2шт.

13

R120570

MANIFOLD

(FRONT)

1шт.

14

R57703

RING

1шт.

15

R120571

EXHAUST MANIFOLD

(REAR)

1шт.

16

19H2719

CAP SCREW

7/16" X 1-7/8", (REAR)

3шт.

19H3465

CAP SCREW

7/16" X 3", (FRONT)

5шт.

17

R63489

WASHER

10шт.

18

19H3705

CAP SCREW

7/16" X 3-1/2", (REAR)

2шт.
