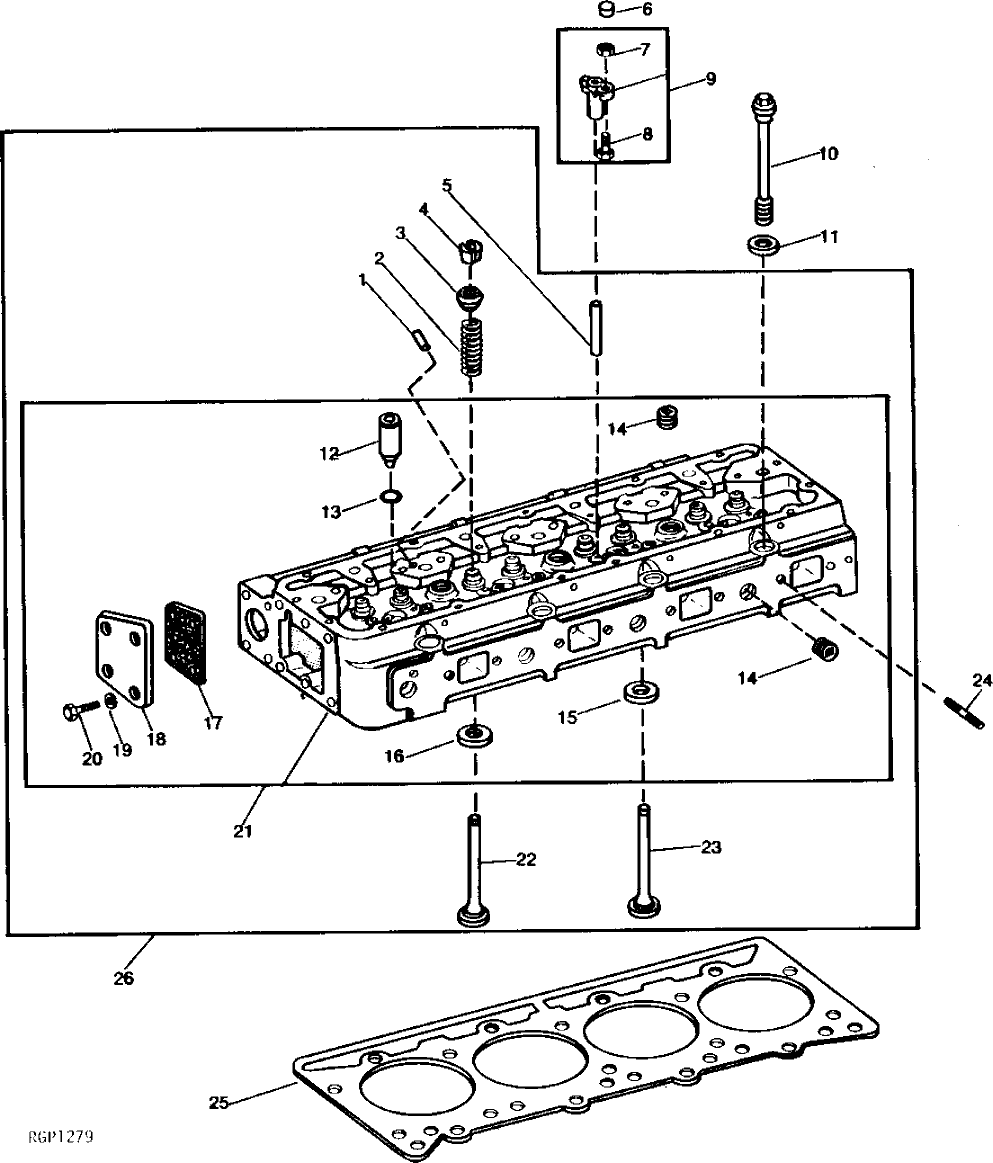

Запчасти John Deere 90 2 - CYLINDER HEAD AND VALVES 409 - ENGINE 4

1

34H247

SPRING PIN

1/8" X 3/4"

1шт.

2

R49571

SPRING

16шт.

3

R62530

ROTATOR

16шт.

4

T20077

RETAINER

32шт.

5

R61999

DOWEL PIN

8шт.

6

R40366

CAP

8шт.

7

R60717

NUT

8шт.

8

R60582

SCREW

8шт.

9

AR73480

ARM

8шт.

10

R63324

BOLT

18шт.

11

R63325

WASHER

18шт.

12

R62528

SLEEVE

4шт.

13

R56751

O-RING

4шт.

14

15H562

PIPE PLUG

1", (SUB FOR AR78522)

7шт.

15H690

PIPE PLUG

3/4", (SUB FOR AR72318)

3шт.

15

R50356

VALVE SEAT INSERT

STD

8шт.

R55061

VALVE SEAT INSERT

0.25 MM OS

8шт.

16

R63078

VALVE SEAT INSERT

STD

8шт.

R68136

VALVE SEAT INSERT

0.25 MM OS

8шт.

17

R75133

GASKET

1шт.

18

R75134

COVER

1шт.

19

12M7066

LOCK WASHER

10 MM

4шт.

20

19M7402

CAP SCREW

M10 X 25

4шт.

21

AR76896

CYLINDER HEAD

(A) (B) (MARKED R58024) (SUB RE10733)

1шт.

RE10733

CYLINDER HEAD

(A) (B) (MARKED R73272)

1шт.

RE10733

CYLINDER HEAD

(MARKED R73272)

1шт.

22

R78445

INTAKE VALVE

STD, (SUB FOR R63079)

8шт.

R68137

INTAKE VALVE

0.08 MM OS

8шт.

R68138

INTAKE VALVE

0.50 MM OS

8шт.

R68139

INTAKE VALVE

1.00 MM OS

8шт.

23

R50357

EXHAUST VALVE

STD

8шт.

R55056

EXHAUST VALVE

0.08 MM OS

8шт.

R55058

EXHAUST VALVE

0.38 MM OS

8шт.

R55060

EXHAUST VALVE

0.76 MM OS

8шт.

24

R61296

STUD

(SUB R82735, APPL)

8шт.

25

RE51641

ENGINE CYLINDER HEAD GASKET

(SUB FOR R62409)

1шт.

26

RE11270

CYLINDER HEAD

1шт.

RG20631

CYLINDER HEAD

REMANUFACTURED

1шт.
